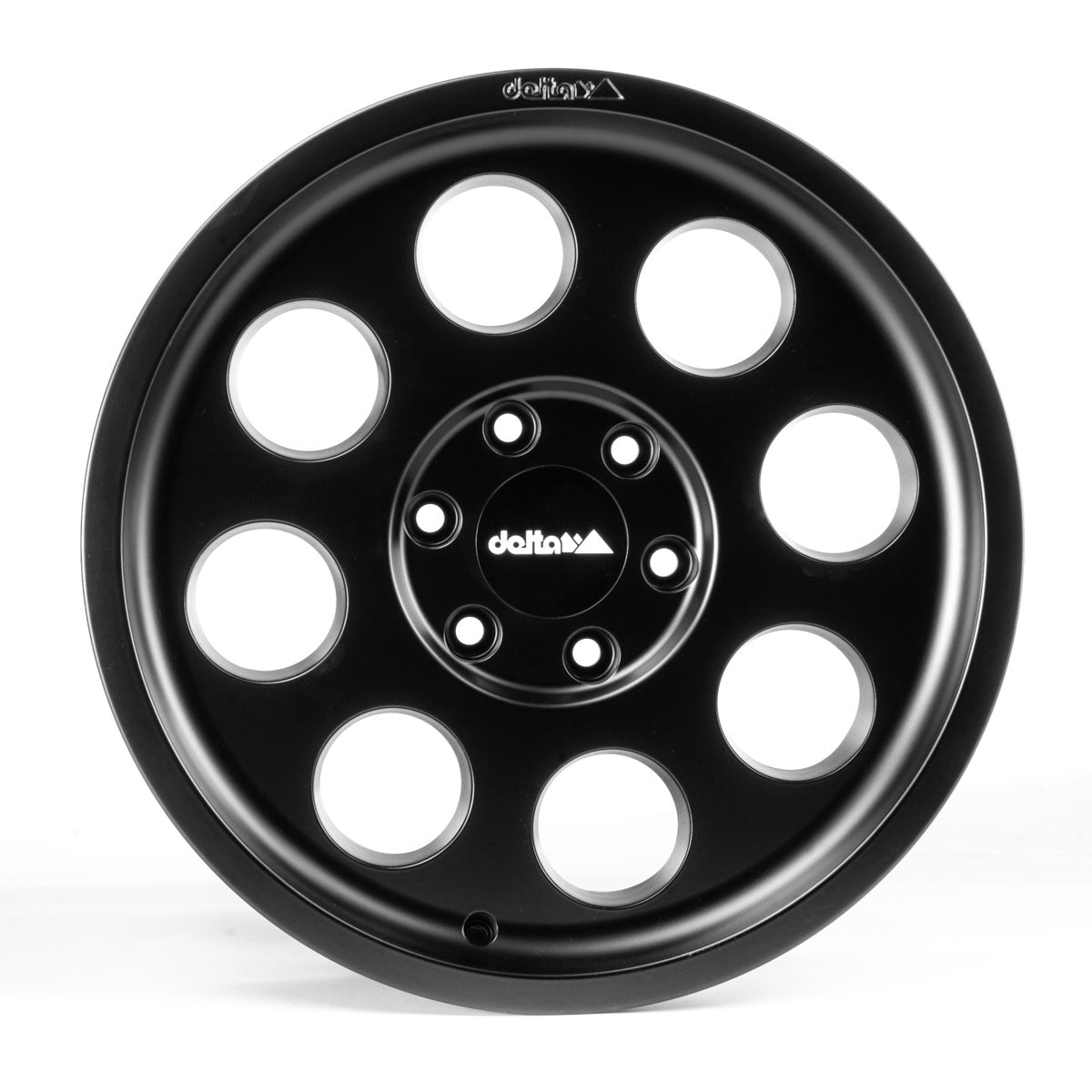

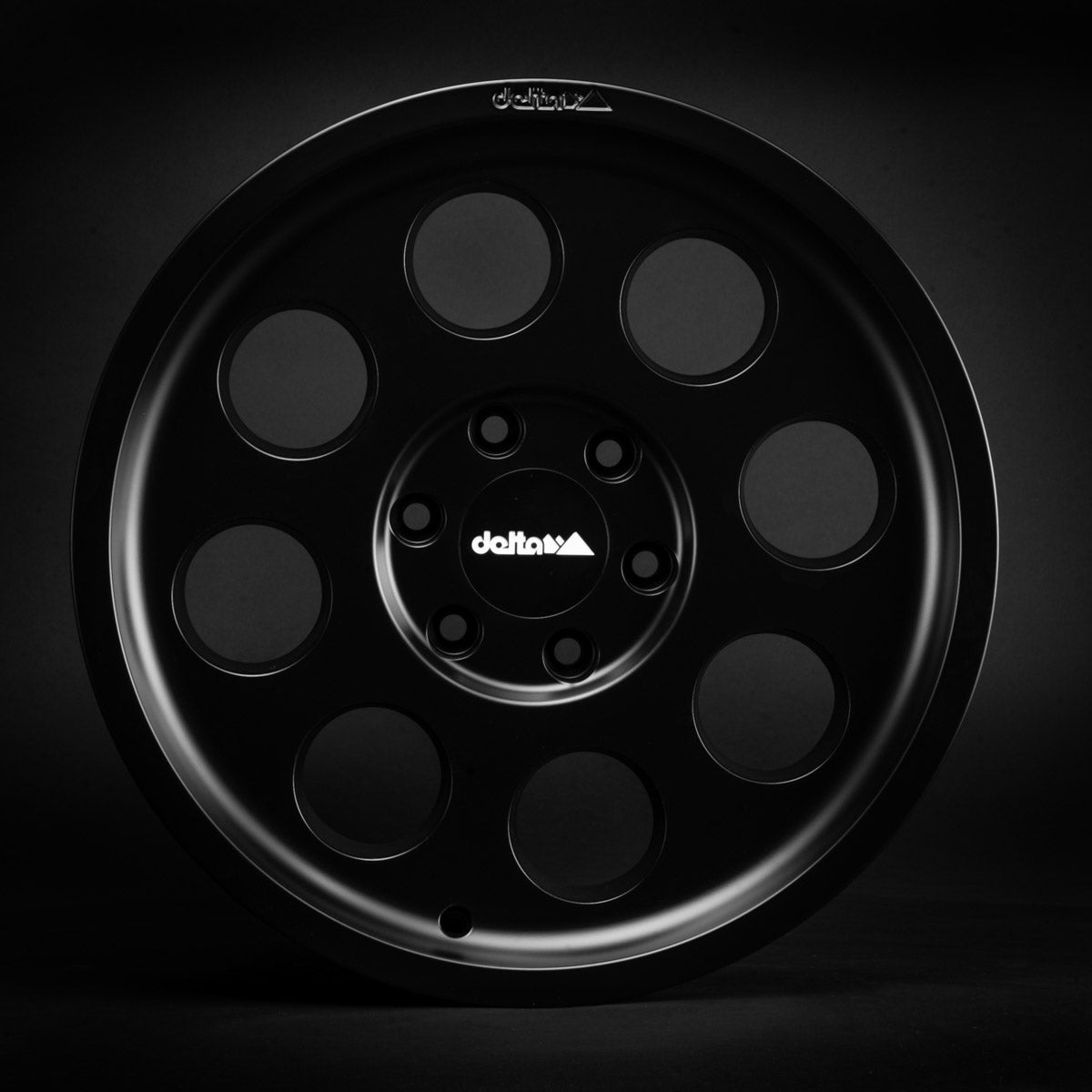

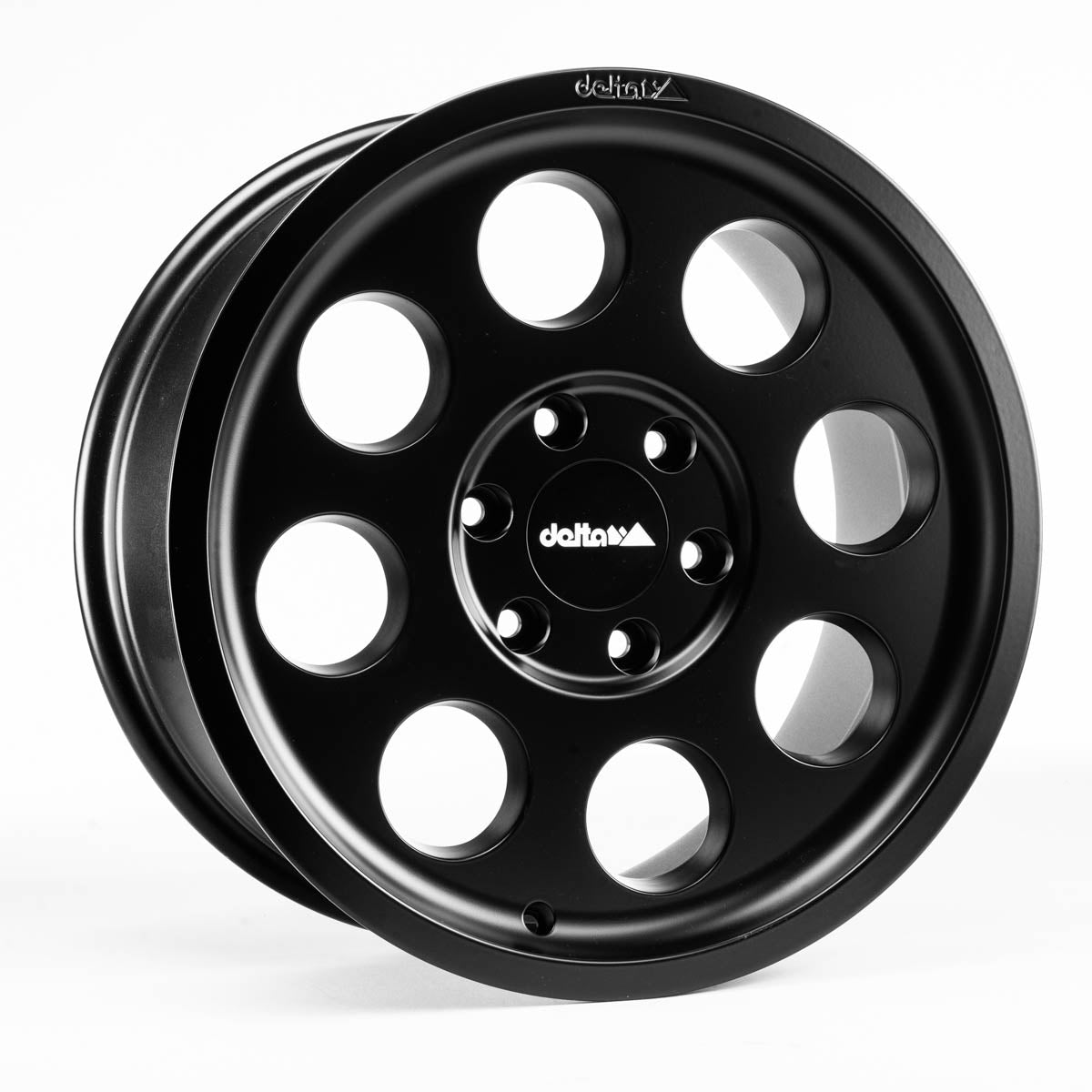

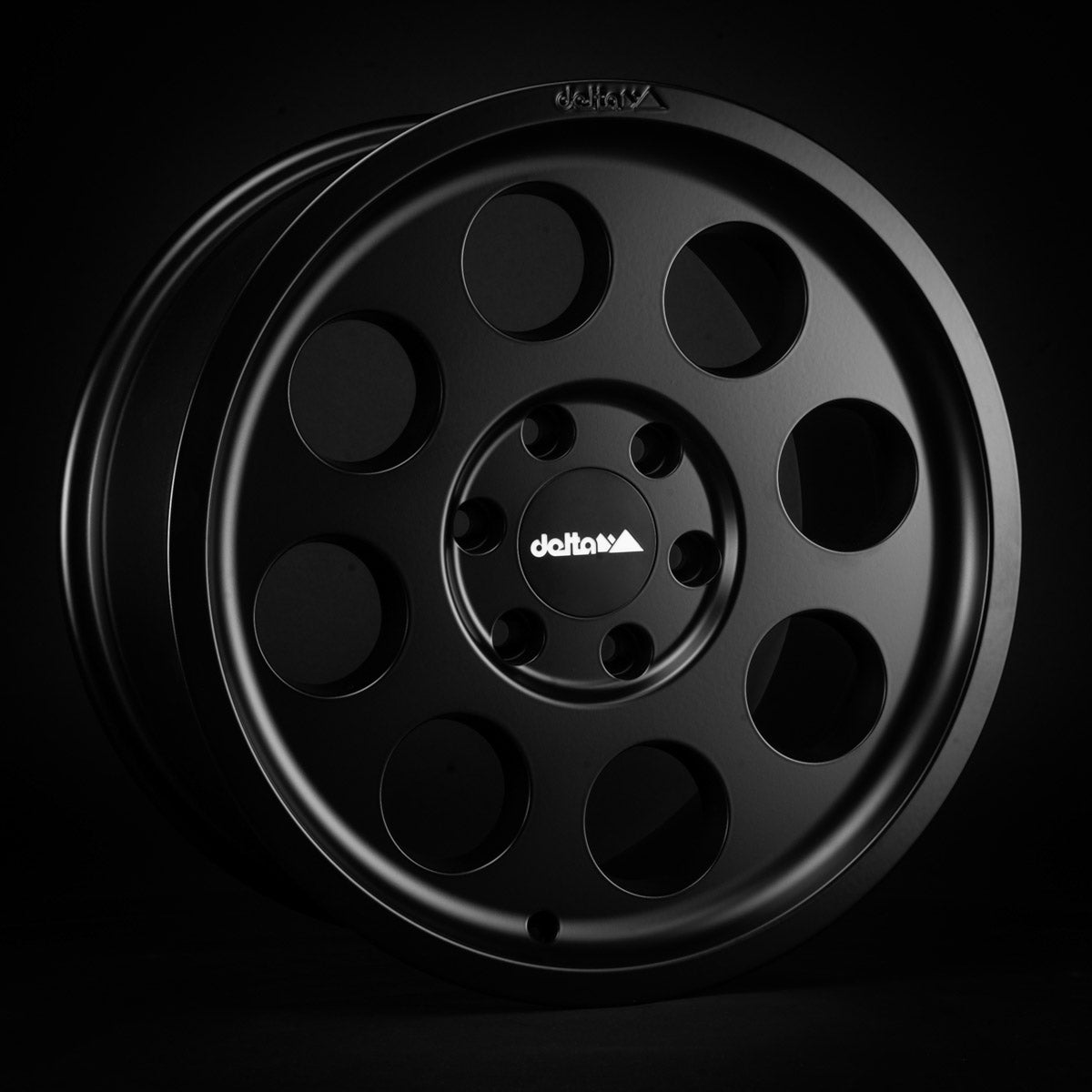

Mercedes Sprinter (W906 | 2006 – 2018) Alloy Wheel Klassik_B Matte Black 18x8.5
The delta4x4 classic for the Mercedes Sprinter! Striking off-road design in matte black with robust beadlock style.
The wheel impresses with its massive appearance and high load capacity. The beadlock ring is easily replaceable in case of damage and bears the delta4x4 logo.
|
Approval |
TÜV expert opinion |
|
For |
Mercedes Sprinter (W906 | 2006 - 2018 ) |
|
Material |
Aluminum |
|
Suitable vehicle types |
906 AC 30 |
|
Manufacturing |
Cast wheel |
|
Design |
one-piece with screwed-on ring |
|
Bolt pattern |
6 x 130 mm |
|
Center bore |
84.1 mm |
|
Weight |
17.6 kg |
|
Notes: |
Finish in matte black with black ring, silver screws |
|
Winter suitability |
Yes |
|
Max. load capacity |
1,300 kg |
|
Possible tire sizes incl. conditions |
235/55 R18 – 104 (Conditions: 1, 2, 3, 4, 5a) |
|
Scope of delivery |
Rim, hub cap, 6 x bolts/nuts, TÜV expert opinion |
Conditions:
1. Only tires and wheels from a single manufacturer and type are permitted for both front and rear axles.
*) The required speed index can be found in the vehicle documents.
If the tire inflation pressure deviates from the standard pressure, the driver must be informed accordingly (tire pressure sticker, addition to the operating manual).
2. Sufficient wheel arch coverage must be provided on the front and rear wheel arches by attaching suitable parts or by other suitable measures.
3. Only tubeless tires with rubber or metal screw valves are permitted. The valves must comply with DIN, E.T.R.T.O., or TRA standards, should be as short as possible, and must not protrude beyond the wheel contour.
4. The use of snow chains is not permitted.
5a. This wheel-tire combination is only permitted up to a maximum axle load of 1800 kg. If necessary, the rear axle load must be limited to this value.
5b. This wheel-tire combination is only permitted up to a maximum axle load of 1850 kg. If necessary, the rear axle load must be limited to this value.
5c. This wheel-tire combination is only permitted up to a maximum axle load of 2060 kg. If necessary, the rear axle load must be limited to this value.
5d. This wheel-tire combination is only permitted up to a maximum axle load of 2240 kg. If necessary, the rear axle load must be limited to this value.
5e. This wheel-tire combination is only permitted up to a maximum axle load of 2360 kg. If necessary, the rear axle load must be limited to this value.
6. This wheel-tire combination is only permitted for vehicles with standard tires 225/75 R16.
