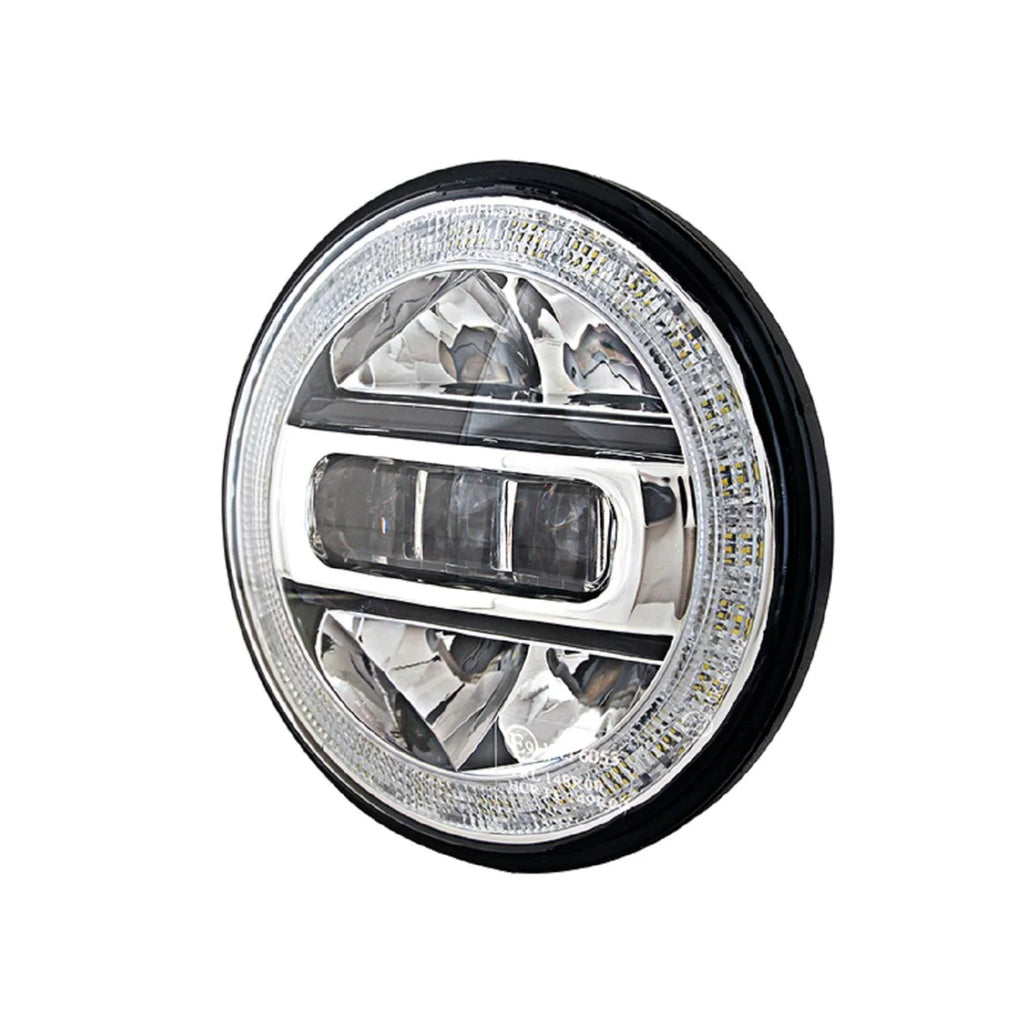

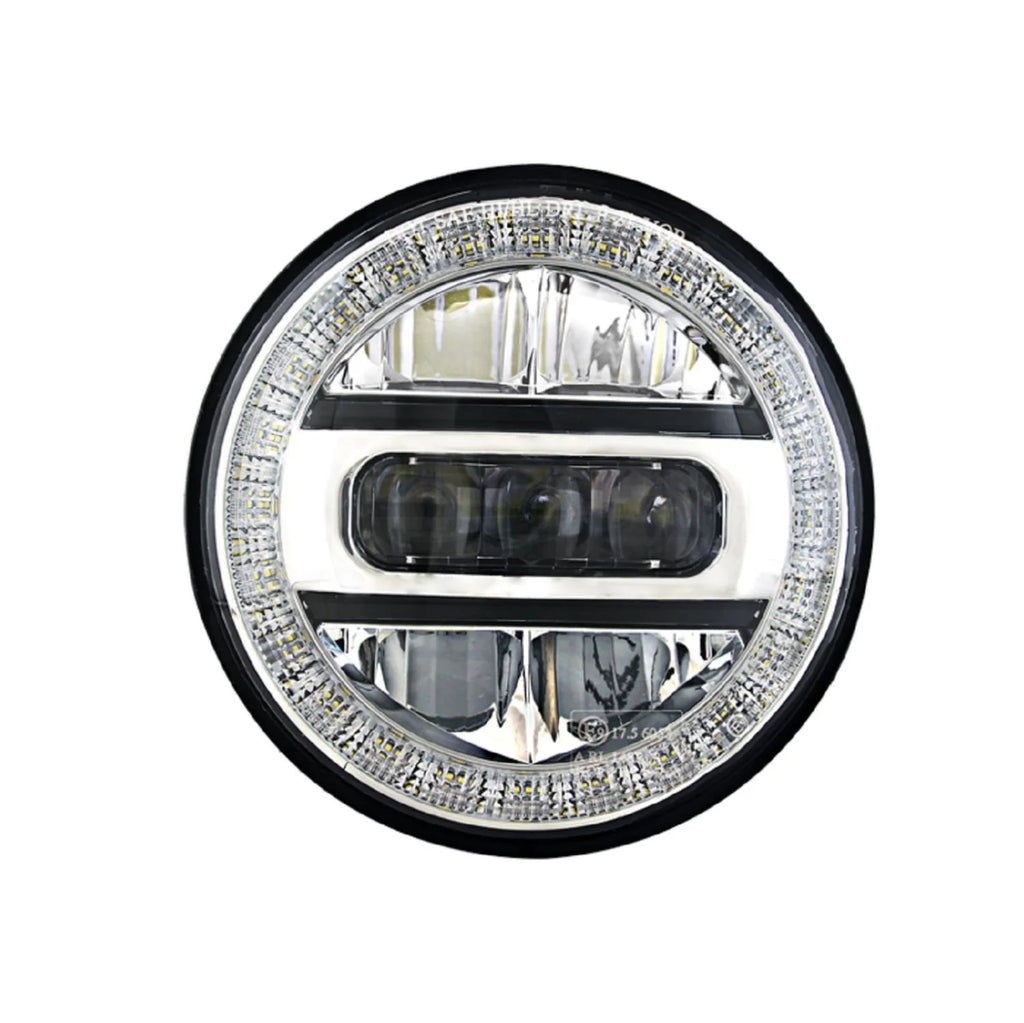

HL5-2 5¾ Inch Bi-LED Headlight with E-Approval
The HL5-2 Bi-LED headlight is the ideal solution if you want to upgrade your vehicle to modern LED technology – with powerful light output, a clear cut-off line, and legal road approval.
Due to its compact 5¾-inch format, the headlight is particularly suitable for classic vehicles, off-road conversions, commercial vehicles, and individual vehicle projects.
Modern Lighting for More Safety
Especially in older vehicles, the original halogen lighting is often one of the biggest weaknesses. The HL5-2 provides a significantly more modern lighting effect and noticeably improves road illumination. The pure white LED light offers clear forward vision and supports you during night drives, bad weather conditions, and long journeys.
Bi-LED Technology

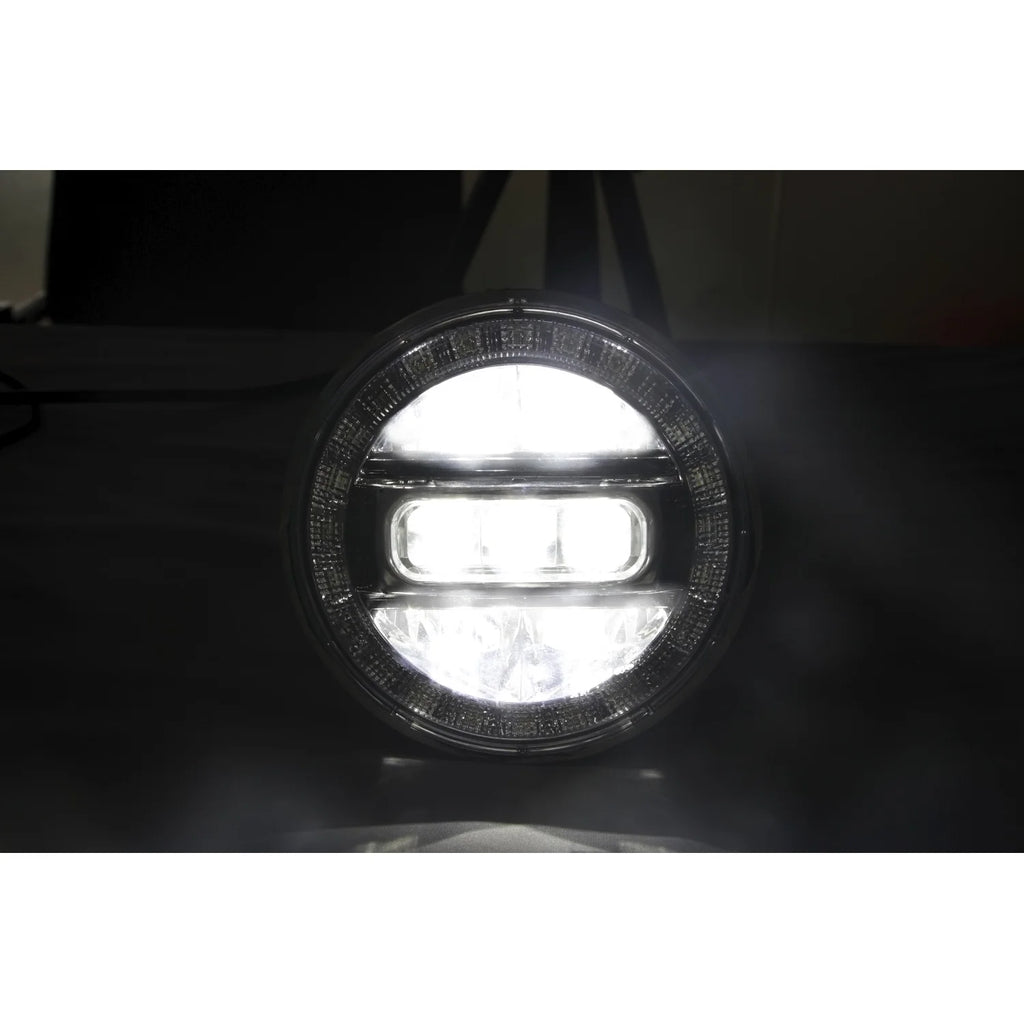

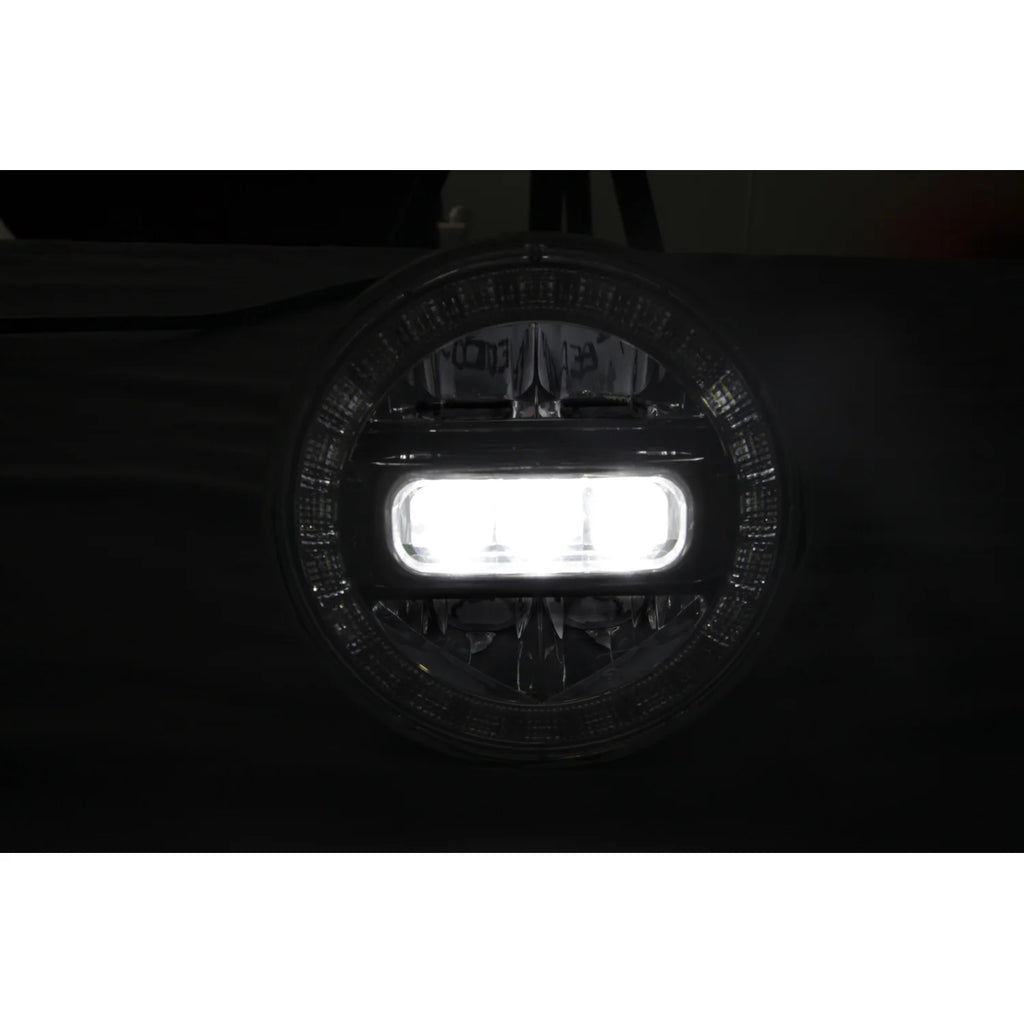

Low beam and high beam in one modern LED headlight.
With E-Approval
ECE R148, R149 and R10 – for legal use on public roads.
Suitable for 12V & 24V
The voltage range of 9–32 V makes the headlight versatile.
Robust Housing
Die-cast aluminum housing, UV-resistant lens, and IP67 protection rating.
Clean Light Distribution with Clear Cut-Off Line
A good LED headlight must not only be bright – controlled light distribution is crucial. The HL5-2 offers broad illumination with a clear cut-off line, which specifically lights up the road without unnecessarily dazzling oncoming traffic.
This makes it particularly interesting for vehicles that are regularly used in everyday life, on country roads, or for tours.
Robustly Designed for Everyday Use, Conversions & Off-Road
The HL5-2 is not only a modern optical upgrade but also technically designed for tough conditions. The hard-coated, UV-protected lens, the die-cast aluminum housing, and the IP67 protection rating make the main headlight resistant to dust, water, and changing weather conditions.
Technical Data
| Item Number | LP-HL5-2 |
| GTIN | 4260357367164 |
| Size | 5¾ Inch / Ø 144 mm |
| Voltage Range | 9–32 V |
| Approval | ECE R148, R149, R10 |
| Protection Class | IP67 |
| Low Beam | 1,800 lm raw / 385 lm effective |
| High Beam | 2,700 lm raw / 935 lm effective |

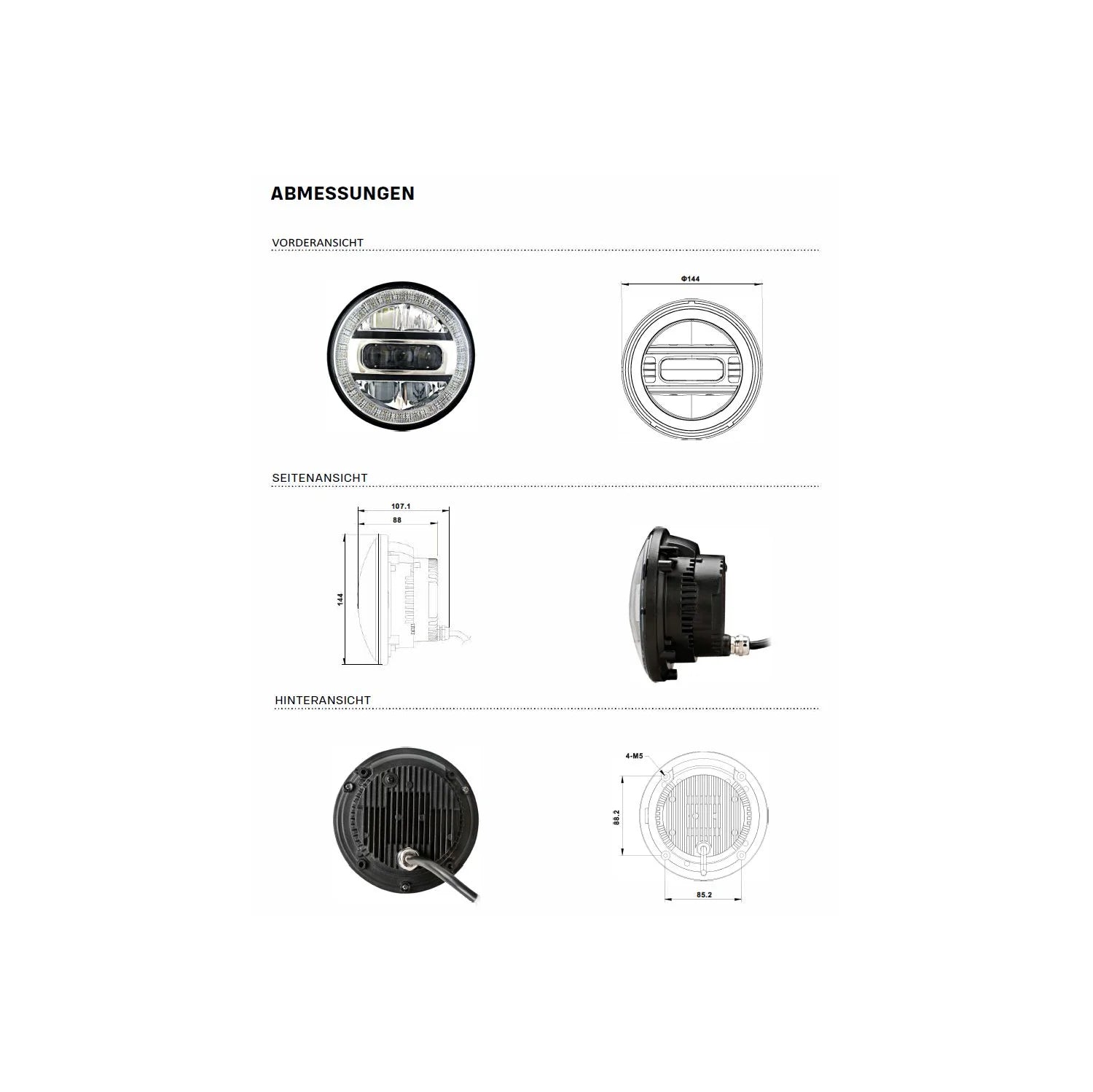

| Depth | 88 mm / 107.1 mm incl. connector output |
| Operating Temperature | -40 °C to +60 °C |
| Lifespan | Up to 30,000 hours |
Connection & Functions
The connection is made via an H4 3-pin connector for high and low beam, and via spade connectors for daytime running light and position light.
| Black | Negative / Ground |
| Red | High Beam |
| Blue | Low Beam |

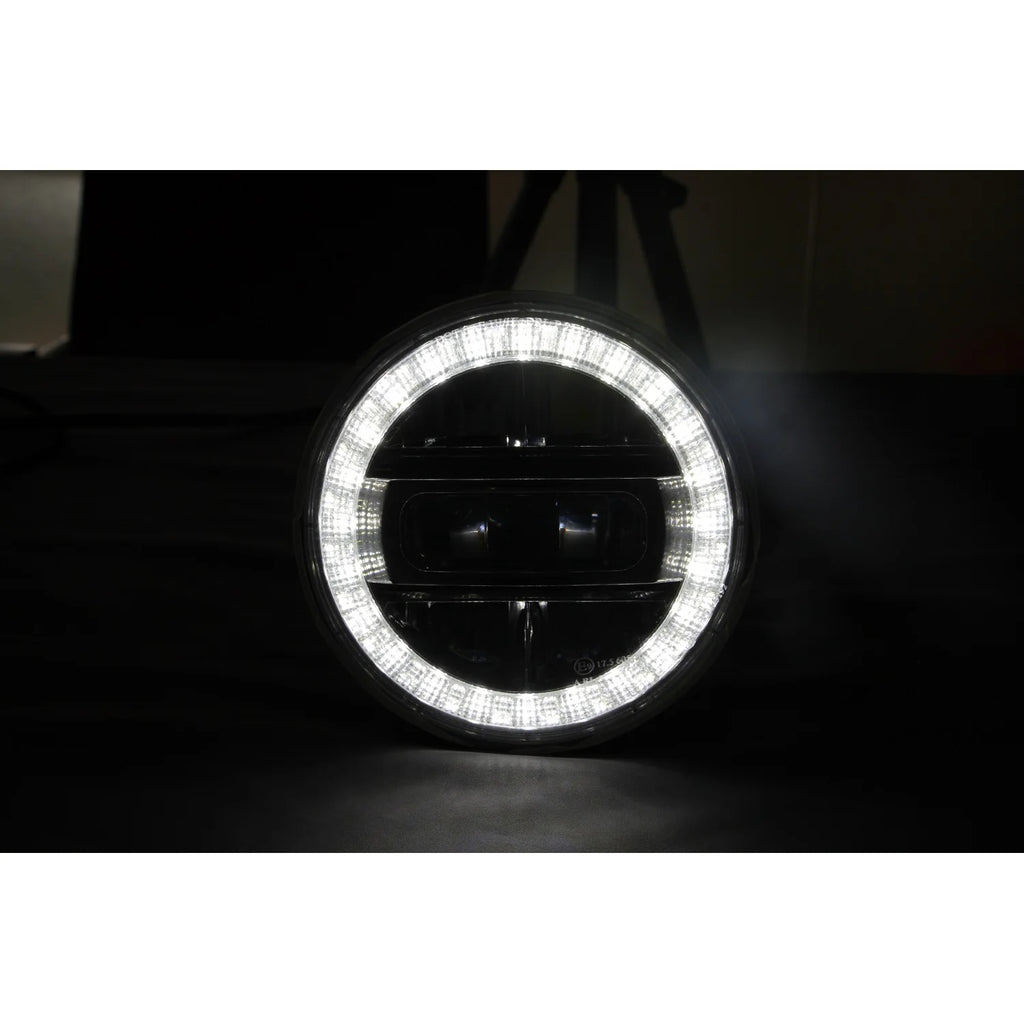

| Green | Daytime Running Light / DRL |
| Yellow | Position Light |
Note from Autohaus Kruse
Ideal for vehicle conversions, classics, and off-road projects with a 5¾-inch headlight mount. Please check compatibility with your vehicle, headlight mount, and existing wiring before installation.
Scope of Delivery
1x HL5-2 5¾ inch Bi-LED Headlight with E-Approval
