TREKFINDER lift kit for SUZUKI Jimny II / +40 mm / not hardness adjustable

The TREKFINDER lift kit for the Suzuki Jimny II is the high-quality complete solution for all who want to give their Jimny more ground clearance, a robust off-road look, and noticeably more stable handling. With a lift of approx. 40 mm, the Suzuki Jimny II becomes more off-road capable and gets a significantly more assertive appearance.

The suspension combines specially tuned TREKFINDER coil springs from H&R with Bilstein B6 gas pressure shock absorbers. The damping is intentionally non-adjustable and offers a clear, robust setup for everyday use, bad roads, travel, and off-road operations.

More ground clearance for off-road, travel, and everyday use

The Suzuki Jimny II is already a compact and extremely off-road capable 4x4 ex works. With the TREKFINDER +40 mm lift kit, this basis is meaningfully extended. The additional ground clearance offers more reserves on ruts, gravel roads, washed-out sections, embankments, and more demanding off-road trails.

At the same time, the coordinated interplay of springs and Bilstein dampers improves the Jimny's handling. The vehicle feels more controlled, stable, and confident – especially when loaded, with roof racks, camping conversions, or other off-road equipment.

Bilstein B6 Gas Pressure Shock Absorbers – robust and non-adjustable

The Bilstein B6 gas pressure shock absorbers included in the set are tuned to the TREKFINDER lift kit and offer a proven, stable damping solution for vehicles with increased demands.

Unlike the KONI variant, this suspension is not adjustable in hardness. This makes it particularly interesting for drivers who are looking for a clear, low-maintenance, and ready-to-use suspension setup without having to adjust the damping themselves.

Advantages at a glance

• Complete lift kit for Suzuki Jimny II
• Approx. 40 mm lift for more ground clearance
• Suitable for Suzuki Jimny II Type GJ & HJ
• Suitable for manual and automatic transmissions
• Suitable for vehicles with or without LED lights
• Bilstein B6 gas pressure shock absorbers in yellow finish
• Non-adjustable damping – robust, fixed tuning
• TREKFINDER coil springs from H&R
• Linear/progressive tuned springs for everyday use, travel, and off-road
• Extended LUCAS V2A braided steel brake lines included in the scope of delivery
• Mounting kit for Jimny models with LED headlights ex works included
• Trailer operation still permitted
• Includes TÜV® parts certificate for technical approval

Tuned springs for more reserves

The TREKFINDER coil springs are specially tuned for the Suzuki Jimny II. They ensure the desired lift and support the vehicle in off-road operations, changing loads, and with additional equipment.

Especially with Jimny conversions with roof racks, awnings, underride protection, camping conversions, rear carriers, tools, or travel luggage, a tuned suspension is sensible. The combination of TREKFINDER/H&R springs and Bilstein B6 dampers offers a robust basis for this.

Extended braided steel brake lines included

Extended LUCAS V2A braided steel brake lines are included in the scope of delivery. These are matched to the lift and replace the original shorter lines. Braided steel brake lines are durable and can contribute to a more precise brake pedal feel.

Suitable for the following vehicles

Technical data

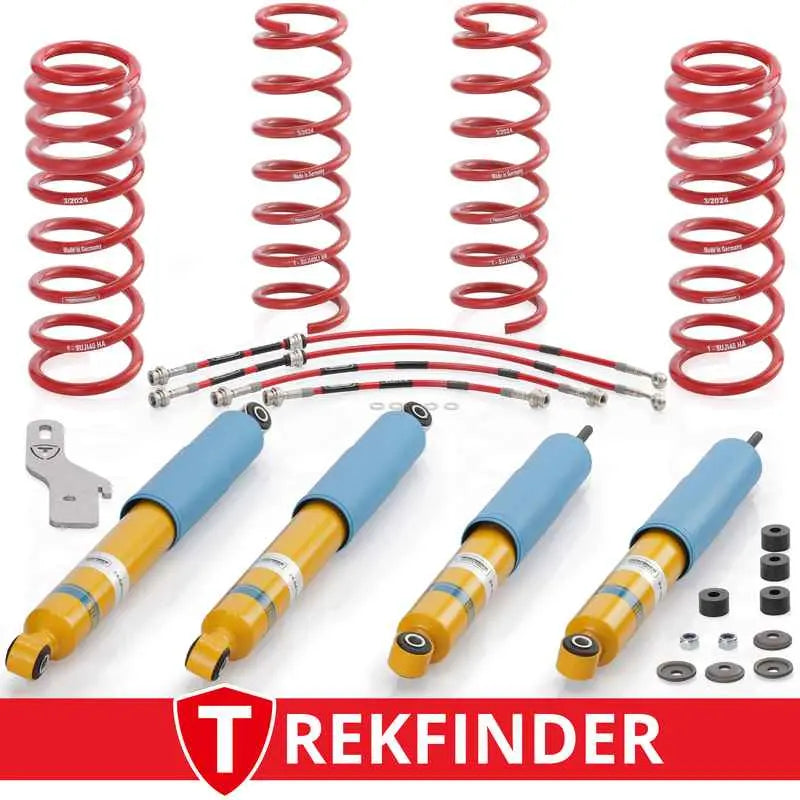

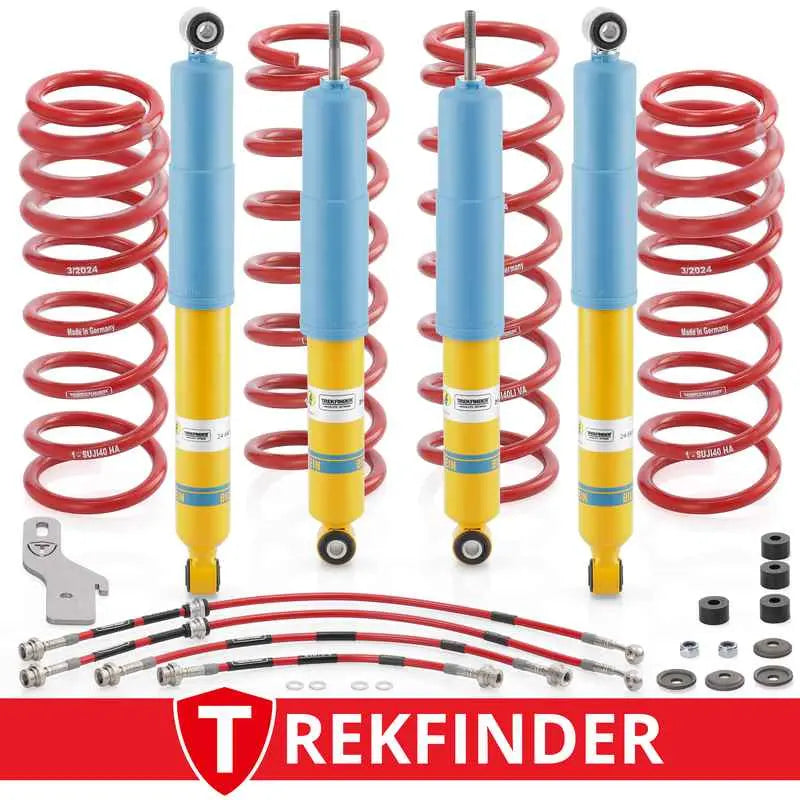

Scope of delivery

• 4x TREKFINDER coil springs, H&R linear/progressive, red
• 4x TREKFINDER shock absorbers, Bilstein B6 gas pressure, non-adjustable, yellow
• 4x TREKFINDER brake lines, LUCAS V2A braided steel, extended, red
• 1x TREKFINDER mounting kit for Jimny models with LED headlights ex works
• 1x TREKFINDER TÜV® parts certificate

Ideal for 215/75R15 tires on standard rims

The suspension is particularly well suited as a basis for a tire conversion to 215/75R15 on standard rims. This tire size visually fits the Jimny II very well and supports the vehicle's off-road character.

Please note that wheel/tire combinations must be checked separately and registered if necessary. Depending on the tires and rims, further components such as wheel spacers, fender flares, or additional certificates may be required.

Optional useful additions

• Spring spacer rings 10 mm for level compensation with additional weight, e.g., due to a winch
• Reinforced steering damper for calmer steering behavior
• Trailing arm bushings / Caster Kit for caster correction, if necessary
• Wheel spacers for a wider look and more stance
• Underride protection as a useful addition for off-road operations

The optional spring spacer rings can be used for level compensation, for example, if additional weight is placed on the front axle due to a winch installation. One spacer ring per spring is possible.

Note on suspension height and driving behavior

The lift of approx. 40 mm offers a very good compromise between additional ground clearance, everyday usability, and technical feasibility for the Suzuki Jimny II. A stronger lift may require further adjustments to the suspension geometry, drivetrain, or steering.

The Bilstein B6 suspension is particularly aimed at drivers who prefer a robust and firmly tuned solution. Those who want individually adjustable damping should alternatively consider the KONI variant.

Notes on installation and approval

Installation should be carried out professionally by a qualified workshop. After installation, all safety-relevant components should be checked and correctly fastened.

A classic wheel alignment and camber adjustment are largely dispensed with on the Jimny with solid axles. To straighten the steering wheel again, adjustment of the drag link is usually required.

Since a TÜV® parts certificate is included in the scope of delivery, the suspension can be registered by a recognized testing organization as part of a modification inspection. Please always observe the conditions and notes in the certificate.

Important note on Panhard rods

Adjustable Panhard rods are not required for this suspension according to the manufacturer. Before ordering, the vehicle type, existing modifications, desired wheel/tire combination, and planned use should be checked.

For whom is this suspension useful?

The TREKFINDER +40 mm suspension with Bilstein B6 dampers is ideal for Jimny drivers who are looking for a robust, non-adjustable, and high-quality tuned complete solution. It is suitable for everyday use, off-road, travel, and conversions with moderate additional weight.

• Everyday and daily use
• Bad roads and off-road use
• Overlanding and travel
• Jimny with roof rack, camping conversion, or additional equipment
• Vehicles with tire conversion
• Robust suspension solution with TÜV® parts certificate
