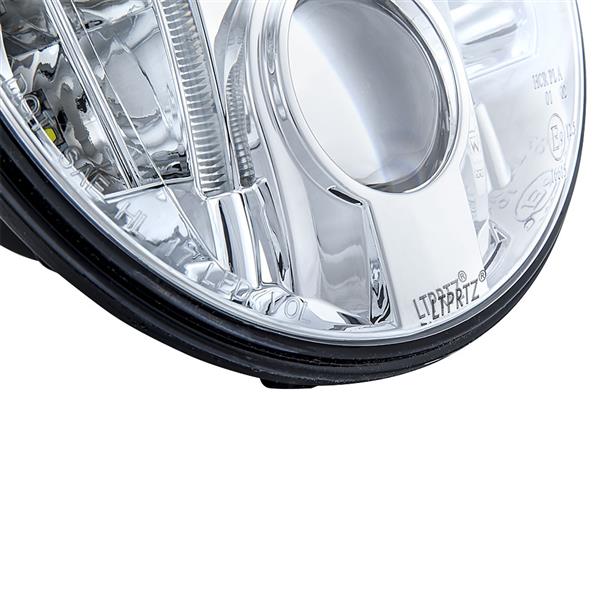

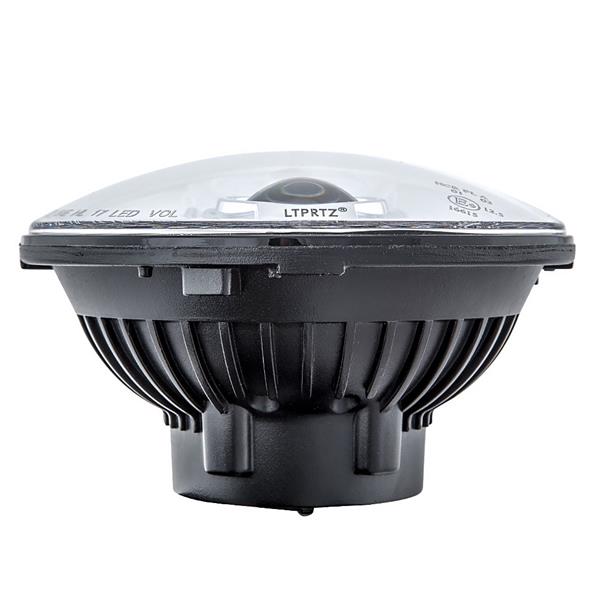

7 Inch LTPRTZ Headlight HL7-2 Chrome

ECE certification according to R112, R10, R7
Reference number 12.5

Features:

• UV-resistant chrome reflector with protective coating
• H2+ hard-coated BAYER2407 raw polycarbonate coating
• with H4 plug and H4 to H13 converter
• UV-resistant Mitsubishi acrylic lens with 96% transparency
• high-quality die-cast aluminum housing for optimal heat regulation
• includes Canbus decoder

Technical Specifications:

• 1 piece, round, black housing, chrome-colored bezel
• Low beam: 30W: effective lumens 957LM
• High beam: 36W: effective lumens 1690LM
• Parking light: 53LM @ 1W
• Input voltage: 9-36V DC
• Housing: black, die-cast aluminum alloy
• Lens: UV-resistant, extra-hardened polycarbonate
• Color temperature: 6000-6500k
• Operating temperature: -40°-85° C
• Overvoltage protection up to 600V
• Lifespan: over 20,000 hours
• Protection class: IP67
• waterproof, dustproof, shockproof
• incl. H4 and H4 to H13 converter
• Replaces PAR56 headlights

Main applications:

• 1955-1983 Jeep CJ-5
• 1976-1986 Jeep CJ-7
• 1981-1985 Jeep CJ-8
• 1997-2006 Jeep Wrangler (TJ)
• 2007-2018 Jeep Wrangler 2-Door (JK)
• 2007-2018 Jeep Wrangler Unlimited 4-Door (JK)
• Land Rover Defender, G-Class Mercedes, Harley Davidson, VW Golf 1 and 2, T3, Hummer and many more...
  (if originally equipped with round 7" headlights)
• DAF Leyland T244
• Installation kit for #6014, 6015, 6016, H6024 and PAR56

Standard conformity:

ECE 112R (low and high beam), 7R (position light), 10R (electromagnetic compatibility), reference number 12.5
