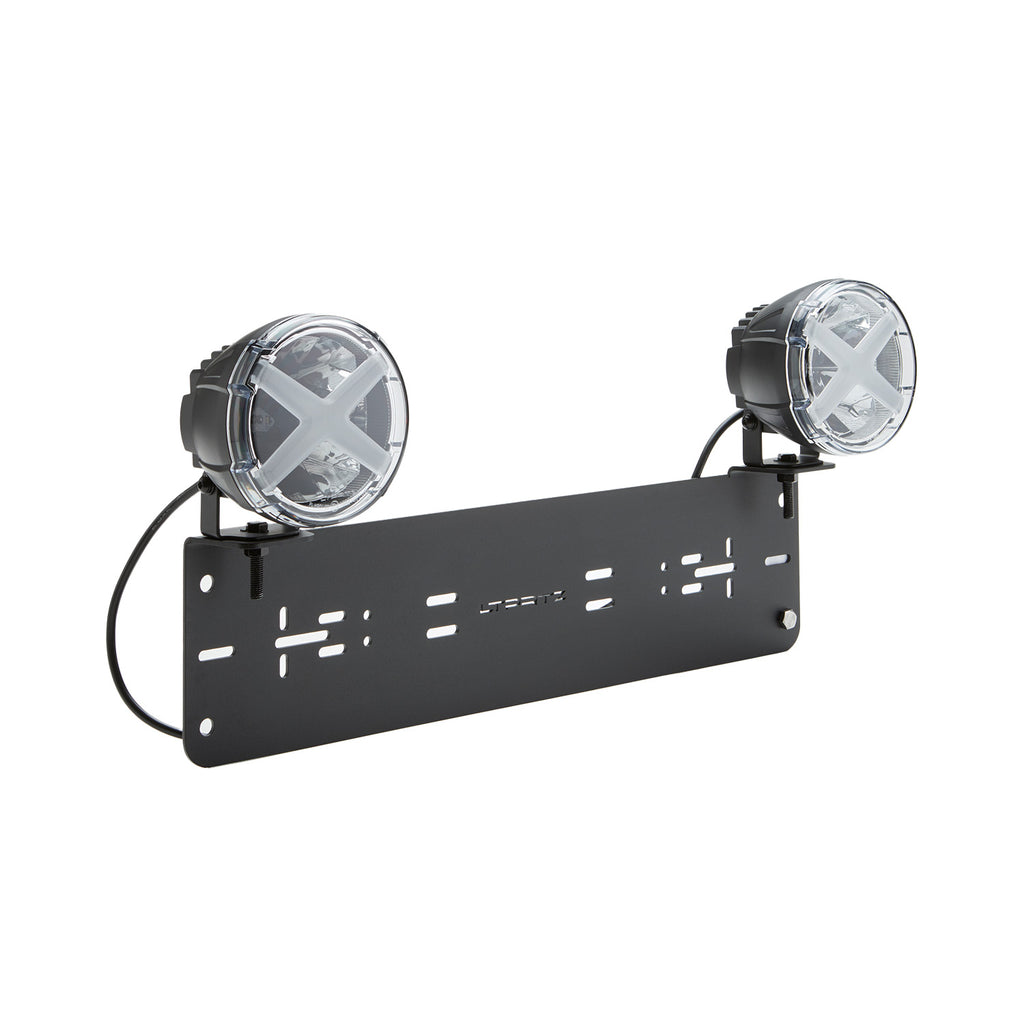

LTPRTZ Savings Set: License Plate Holder + 2x X-Type 5 Inch + Wiring Harness + End Caps

Auxiliary Light Mount for Mounting Auxiliary Lights Behind the License Plate

Optimize your vehicle's lighting with this robust mount, which allows for convenient installation of the included X-Type 5-inch auxiliary lights behind your car's license plate. Ideal for drivers who want to improve their visibility in poor light conditions without affecting the vehicle's appearance.

License Plate Bracket:

• Material: high-quality stainless steel for maximum stability and durability (Made in Germany)
• Powder coating: black, powder-coated surface protects against corrosion and gives the mount a modern, discreet look
• Easy installation: can be easily attached behind the license plate for discreet yet effective mounting of auxiliary lights
• Compatibility: Universally applicable for many car models for additional lighting above or below the license plate
• Versatile: Perfectly suited for auxiliary lights or light bars that provide increased visibility at night or in difficult road conditions.

X-TYPE 5-inch Auxiliary Lights with E-Approval

Special Features:

• water and dustproof, shock resistant
• durable and high-quality materials
• PHC587 coating against yellowing
• extremely small installation size fits many vehicles
• can be used in ambient temperatures from -40° to +80°
• electromagnetic compatibility certification
• Reference number: 20 - also suitable for cars with LED and matrix lights!
• Range: 470 m (0.1 lx), 296 m (1 lx)

Technical Data:

• Operating voltage: 9-33 V DC
• Consumption (12/24 V):
  • High beam: 24.6 W / 22.8 W
  • Position White: 2.2 W / 2.4 W
• Housing: ADC12 aluminum, black coated
• Lens and Reflector: Polycarbonate
• Mounting bracket: SPCC
• Reference number: 20
• Connection: Deutsch 4-pin
• Protection class: IP69K
• ECE Homologation: R10 | R7 | R112 Class B
• LEDs: High beam 4x | Position light White: 16x
• Light color High beam: 6000 K Cool white
• Lumen (raw): 4,000 lm
• Luminous intensity: 96,000 cd
• Dimensions: Ø 121 x 90 mm
• Weight: 0.7 kg

LTPRTZ Black Cover

• Practical snap-on cover
• Protection against stone chips
• Color: black
• 2 pieces

Wiring Harness for two Auxiliary Lights with 4 Pin DT Connector

• with two included toggle switches or optionally for connecting the Can Bus high beam control
• Toggle switch 1 for switching the high beam (a separate measurement line must be pulled from the dashboard to illuminate the switch)
• Toggle switch 2 with two positions for switching the position light
• Connectors for connecting the switches included
• Crimp connectors for extending the cables included
• 40A high-power relay and fuse holder with 30 A blade fuse
• Cable length: 3 m
• 2 pieces Deutsch 4-pin connectors
• Battery - and + ring terminals for M8
• Maximum power 10A
