Chassis Reiger MT-RC 2.5 Toyota LC250
Chassis Reiger MT-RC 2.5 Toyota LC250
Lieferzeit
Dakar Technology for the Legend
Reiger MT-RC 2.5 Suspension – The Expedition Upgrade for the Land Cruiser 250
The new Toyota Land Cruiser 250 has everything an true expedition vehicle needs. However, as soon as a roof rack, heavy-duty drawers, winch, underbody protection, and a large roof tent are installed, the series suspension quickly reaches its limits on dirt roads and when cornering.
With the Reiger MT-RC 2.5 Offroad Suspension, you elevate your LC250 to an entirely new level. Equipped with external reservoirs, massive monotube dampers, and individually adjustable damping, this setup brings true rally-raid performance to your Toyota. Corrugated roads, fast gravel stages, and deep potholes are controlled much more confidently – even with heavy loads.
Built for your individual overlanding setup
No two Land Cruisers are alike. One is a light everyday off-roader, the other a heavy long-term touring vehicle with a roof tent, auxiliary tank, winch, rear carrier, and full interior build-out. A stock suspension is always a compromise here.
Reiger Suspension does not make this compromise. The MT-RC 2.5 suspension is developed for tough off-road use, heavy vehicles, and long journeys. It adds more reserves to the chassis, stabilizes the body, and ensures that your Land Cruiser remains controlled even with travel weight.
No fading due to large reserves
On endless African or Australian washboard roads, conventional damper oil gets extremely hot. The external reservoirs of the Reiger suspension increase oil volume, improve heat dissipation, and keep damping stable even under continuous load.
Adjustable Performance
You can fine-tune your Land Cruiser's handling: more comfortable for scree and slow trails, stiffer for fast stages, or more stable for heavy loads with a roof tent and full build-out.
More ground clearance and reserves
The MT-RC 2.5 is designed for vehicle-specific off-road setups. More ground clearance, more control, and more suspension travel reserves make your LC250 significantly more confident when the terrain gets worse.
A companion for tough tours
Reiger dampers are designed for service, maintenance, and tough use. Instead of a disposable component, you get a professional suspension designed for long off-road trips, heavy continuous loads, and true expeditions.

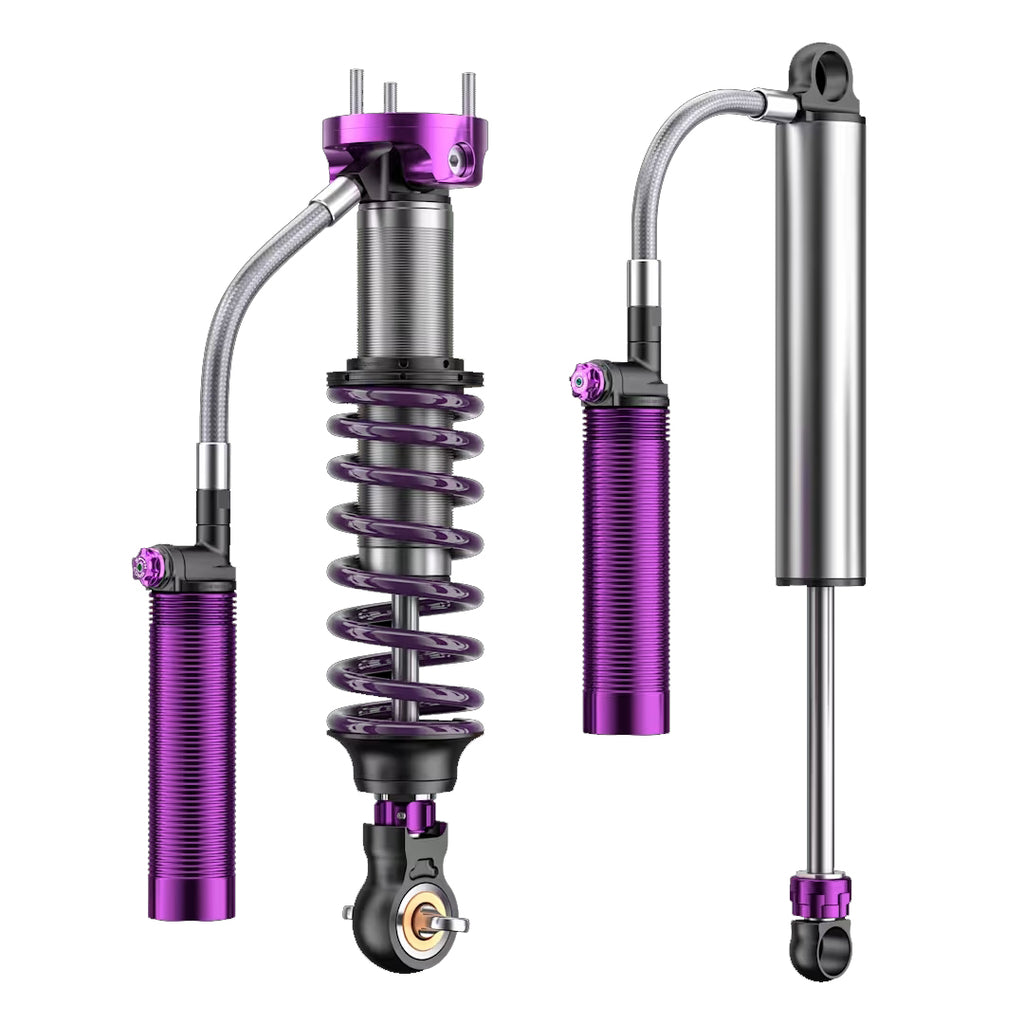

Technical Specifications MT-RC 2.5 for Toyota Land Cruiser 250
- Vehicle compatibility: suitable for Toyota Land Cruiser LC 250.
- Article number: R0556030.
- Product line: Reiger MT-RC 2.5 Offroad Suspension.
- Technology: Monotube / single-tube gas-pressure damper from the rally-raid sector.
- Damper body: 66mm single-tube construction.
- Piston: 58mm main piston for large hydraulic working area.
- Piston rod: 20mm hard-chrome-plated piston rod.
- Cooling: external reservoirs for more oil volume and better heat dissipation.
- Damping: adjustable setup for road, off-road, travel weight, and fast tracks.
- Application: Overlanding, 4x4, Expedition, heavy loads, gravel, sand, and washboard roads.
Important note on setup:
Your actual axle loads and permanent attachments are crucial for the optimal suspension. Winch, roof tent,
underbody protection, rear carrier, heavy-duty drawers, auxiliary tank, and interior build-out should be taken into account for the tuning.
Protect the vehicle, save the journey
Thousands of kilometers over washboard roads and deep potholes transmit massive vibrations into the chassis. An overstressed stock suspension transmits these shocks directly to the frame, occupants, and expensive rear build-out.
The Reiger MT-RC 2.5 reduces precisely this stress. It keeps the wheels better on the ground, calms the body, and ensures that your Land Cruiser is not only faster but above all more controlled and less prone to material wear on bad roads.
Dakar DNA for your Toyota setup
Reiger is at home in motorsport. This very experience benefits you in the LC250: large reserves, strong damping, controlled response, and technology that has to work not only on the test bench but out in the dirt.
The MT-RC 2.5 is therefore not just a lift kit. It is a true performance suspension for drivers who really push their Land Cruiser 250 with lots of equipment, long stages, and rough terrain.
Made for heavy vehicles
A stock suspension is rarely built for permanent travel weight. If your Toyota is equipped with a roof tent, build-out, auxiliary tank, tools, and recovery gear, you need a suspension that can handle precisely this reality.
The Reiger MT-RC 2.5 gives you more reserves when compressing, more calm in the vehicle, and more control in situations where standard dampers quickly become spongy or thermally degrade.
Get the Dakar Setup for your Toyota
Turn your new Land Cruiser 250 into the world-travel-ready off-roader it was built to be. Trust suspension technology that is at home in tough motorsport and on long off-road stages.
Order your custom-made Reiger MT-RC 2.5 Offroad Suspension for the Toyota Land Cruiser 250 now and experience more control, comfort, and safety on your next tour.
