HL7-4 7 Inch Bi-LED Headlight
HL7-4 7 Inch Bi-LED Headlight
Lieferzeit
7 Inch Bi-LED Headlight with E-Approval
HL7-4 7 Inch Bi-LED Headlight – More Visibility for Road, Conversion & Off-Road
If you want to convert your vehicle to LED without compromising on looks and function, the HL7-4 7 Inch Bi-LED Headlight is just the upgrade for you. You get low beam, high beam, daytime running light, and position light in one compact system, ready for road and off-road use.
Modern Bi-LED Technology Instead of Old Halogen Lamps

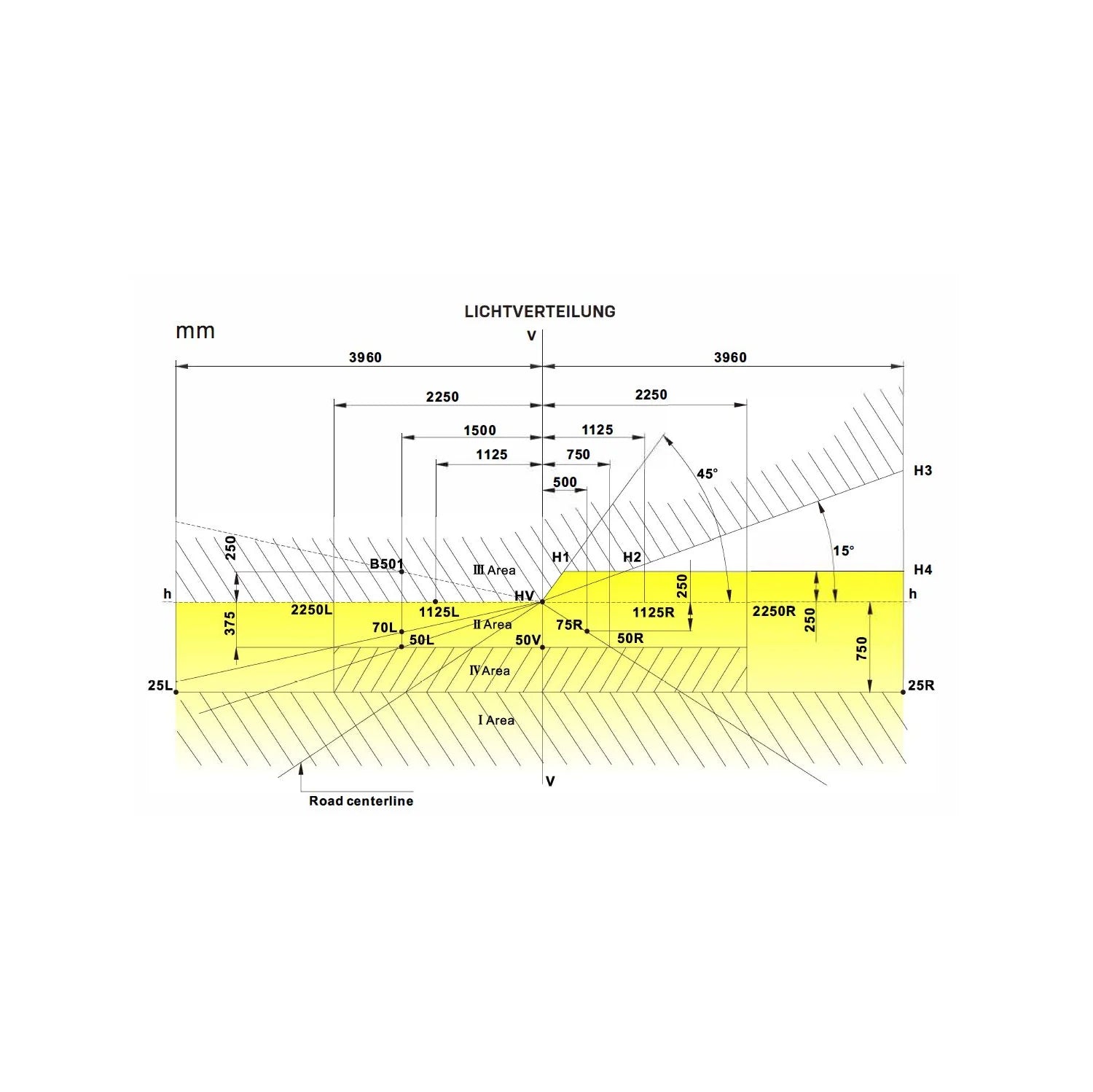

The headlight provides you with clean light distribution with a clear cut-off line and wide illumination. This means: better visibility at night, less eye strain, and more safety, whether on country roads or off-road.
With pure white light, you get significantly more contrast from the surroundings and detect obstacles earlier.
Plug & Play for 7 Inch Vehicles
The headlight fits all vehicles with a 7-inch mount and works on both 12V and 24V systems.

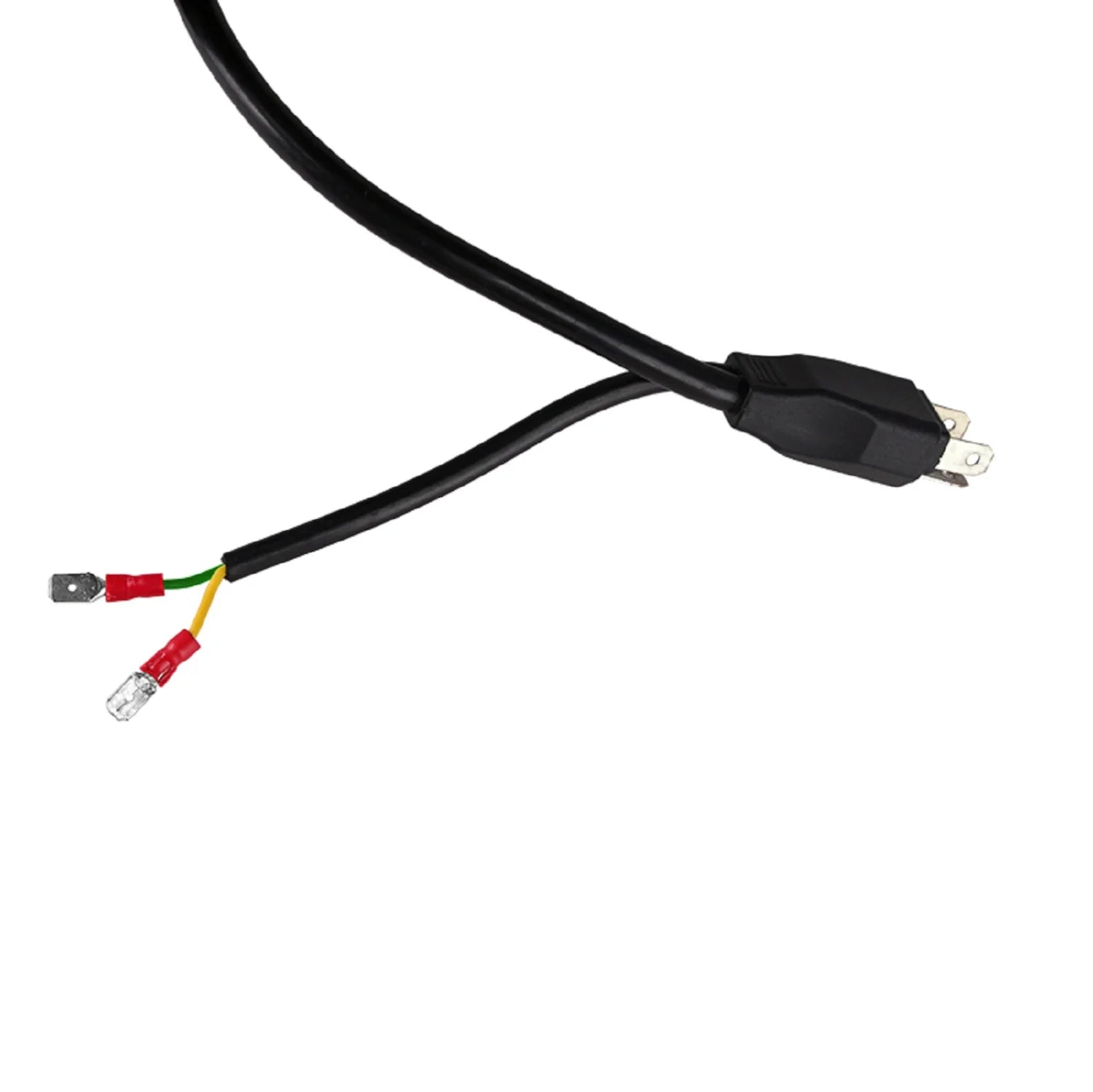

Connection is via an H4 connector for high and low beam, plus additional wires for DRL and position light. An H4 to H13 adapter is included.
Technical Specifications
| Model | HL7-4 |
| Voltage | 9V – 32V |
| Functions | Low beam, High beam, DRL, Position light |
| Luminous flux low beam | 948 lm effective |
| Luminous flux high beam | 1886 lm effective |
| Protection class | IP68 |
| Homologation | ECE R148, R149, R10 |
| Reference number | 20 |
| Temperature range | -40° to +60° |
| Dimensions | Ø 174.9 mm / Depth approx. 109 mm |
| Weight | 1.02 kg |
Scope of Delivery
- 1x HL7-4 7 Inch Bi-LED Headlight
- 1x H4 to H13 Adapter
If you want more light, modern looks, and real everyday usability, the HL7-4 is exactly what you need. Road-legal, robustly built, and perfect for your 7-inch conversion, whether off-road, daily driver, or project vehicle.
