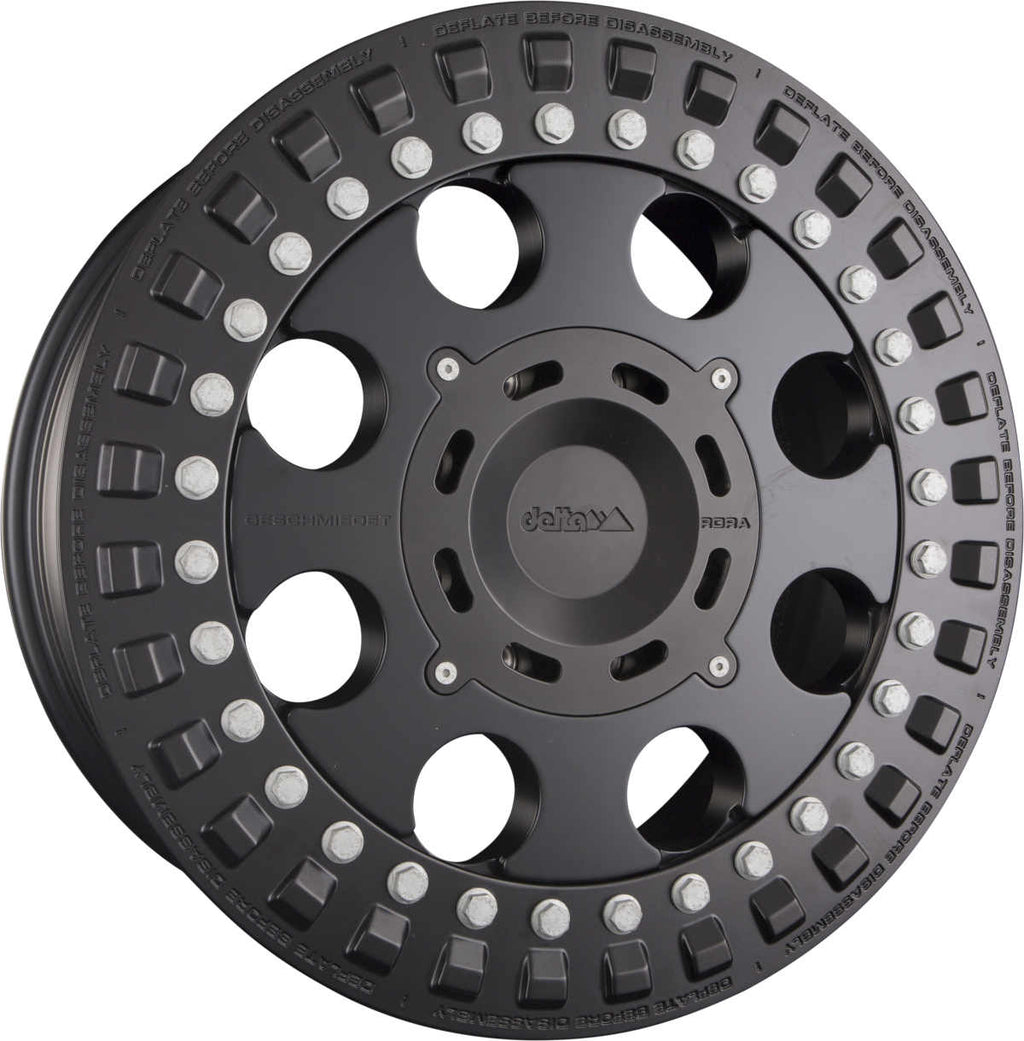

Mercedes G-Class Aluminum Wheel Force Forged (casted) Matte Black
The Beadlock wheel Force20 is constructed in two parts and is offered either as a delta Force20 Monoblock Casted using a low-pressure casting process or as a forged delta Force20 Forged wheel.
The main difference between the two models lies in the strength for which they are designed: The forged Beadlock wheel is tested for a wheel load of 2,500 kg, while the Beadlock Casted is manufactured for a load capacity of 1,800 kg. Both wheels are designed so that tires can be mounted with or without a beadlock ring.
What's behind Beadlock technology?
This is a mechanical device that firmly connects the tire to the rim: In a wheel of the usual standard design, the tire is pressed against the rim flange by the inflation pressure and thus secured. If the air pressure drops, the tire loses its grip and can then completely slide off the rim. This happens, for example, if there is a puncture or if the inflation pressure has been deliberately reduced for off-road use to build up more traction on sand, snow, or mud due to the increased flexing. To prevent this dangerous situation for the vehicle and driver, the tire is pressed onto the rim flange with a beadlock ring during assembly using delta4x4's Beadlock technology. This ensures that the tire is always firmly connected to the rim – whether with or without air.
Even with extremely strong acceleration or braking, the friction forces between the rim and tire may not be sufficient, so that both components can twist against each other. This is also prevented by the Beadlock system, which mechanically fixes the tire (hence "lock"). The word "bead," on the other hand, means "rim bed." Thus, Beadlock stands for "a tire that is mechanically fixed in the rim bed."
Where are Beadlock wheels used?
Basically, this technology comes from the military, where care is taken to ensure that operational vehicles remain operational even after a complete loss of tire pressure. Armed forces require their vehicles to be able to travel up to 100 kilometers at a speed of 80 km/h for a short time. This is made possible by Beadlock technology with a beadlock ring and a run-flat element.
Meanwhile, Beadlock wheels are increasingly used in the civilian sector – for example, in armored vehicles and increasingly in expedition vehicles and long-distance rallies. Here, the advantage is that the inflation pressure in the tires can be reduced to a minimum without the tire coming off the rim.
| Approval | TÜV component certificate |
| Suitable for model | Mercedes G-Class (all models) |
| Material | Aluminum |
| EC type approval number | |
| EAN | 4250010738882 |
| Manufacturing | casted |
| Design | two-piece Beadlock technology |
| Color | Matte Black with silver screws |
| Bolt Circle | 5 x 130 mm |
| Offset (ET) | 30 mm |
| Center Bore | 84.1 mm |
| Weight | approx. 30 kg |
| Notes: | |
| Winter suitability | Yes |
| Max. Load Capacity | 1,800 kg |
| Scope of delivery | Rim, hub cap, 5 x bolts/nuts, TÜV component certificate |
