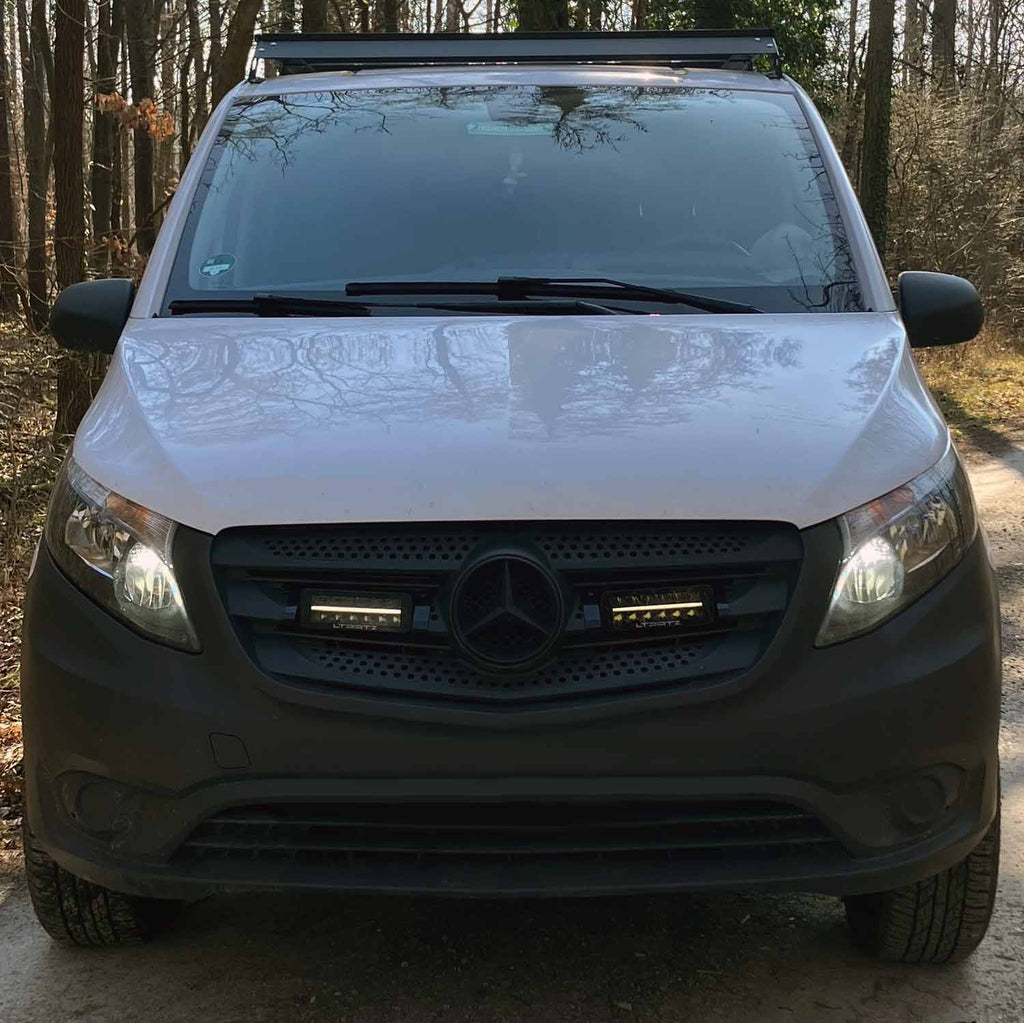

LTPRTZ MB Vito W447 (2014-2019) Grille Integration Kit Plug & Play

With the help of the detailed installation instructions, you can install your headlights yourself in the grille of your vehicle.

Mounts:

• four high-quality mounts for two headlights
• sturdy 3D-printed mounts
• paintable
• UV and weather-resistant ABS material
• suitable for Mercedes Vito W447 (2014-2019)
• alignment of the headlights on the mount through slotted holes

Headlights:

• 3rd generation of our popular TRX series
• with white position light strip (with E-approval)
• with Offroad Boost Mode function. Off public roads, Boost Mode can be activated.
• the innovative anti-glare reflectors combine focused spot and
  wide-spreading flood elements for homogeneous illumination of the entire field of vision
• complete with mounting material
• unique stealth design without screws on the front
• Area of use: public roads with ECE approval for high beam

Technical data:

• High beam power: R149: 22.8W | Boost Mode: 47.6W
• Position light power: R148: 6W
• Operating voltage: 10-30 V
• Protection class: IP 67
• LED Chips: 12 pieces of 5W each
• Luminous flux (effective): 1,540 lm | Boost Mode: 3,238 lm
• Housing color: black
• Color temperature: 5800K
• Material: extruded aluminum housing
• Lens material: Polycarbonate
• Mounting: robust aluminum bracket
• Light distribution: Spot 10°
• Range: 658 m (0.25 Lx), 329 m (1 Lx)
• Homologation: ECE R149 | R10
• Reference number: 25
• Dimensions L x D x H (housing): 20.36 x 6.71 x 7.0 cm

Relay cable set with dongle

Cable set for easy connection of auxiliary headlights. All connections and cable lengths are pre-assembled, so that installation can be done quickly, easily and safely.

The cable set is simply connected to the battery in the engine compartment, the ground point behind it, and the headlights.
No cables need to be routed into the passenger compartment!

A Bluetooth relay integrated into the cable set communicates with the vehicle via an OBD dongle. This means that the headlights are controlled synchronously with the vehicle's standard high beam.
This eliminates the tedious search for the high beam signal and ensures non-destructive installation.

Before first use, the dongle must be set up via an app: The appropriate protocol for the vehicle must be selected in the app and the signals assigned. Time required: approx. 5 minutes.

Notes:
The reference number of the main headlight must be checked by the customer to prevent exceeding the permissible total reference number of 100. This primarily applies to vehicles with standard LED headlights.
For some vehicles, it is necessary to test several protocols in the XBB App to select the appropriate protocol for one's own vehicle.

CAR-ELECTRIC cable set:
Relay cable set for two LED high-performance lights with 4-pin DT connector

• only suitable for headlights LP-TRX3-7E
• 2x Deutsch connector 4-pin
• precisely fitting cable set for connecting two headlights
• with relay holder for XBB PowerUnit relay in the engine compartment
• High-quality cables and contacts, ring terminal design: M6
• Made in Reinbek near Hamburg, Germany

XBB Bluetooth Dongle:

• XBB Bluetooth dongle for connecting to the OBD interface
• Setup via app (App name: XBB)
• In-app configuration of headlight control
• Selection from various functions: e.g., coupling of high beam to high beam signal, coupling of position light to engine running signal

Scope of delivery:

• 2x TRX 3.0 7 inch
• 4x ABS bracket
• 1x CAR-ELECTRIC cable set
• 1x XBB Dongle & XBB PowerUnit
