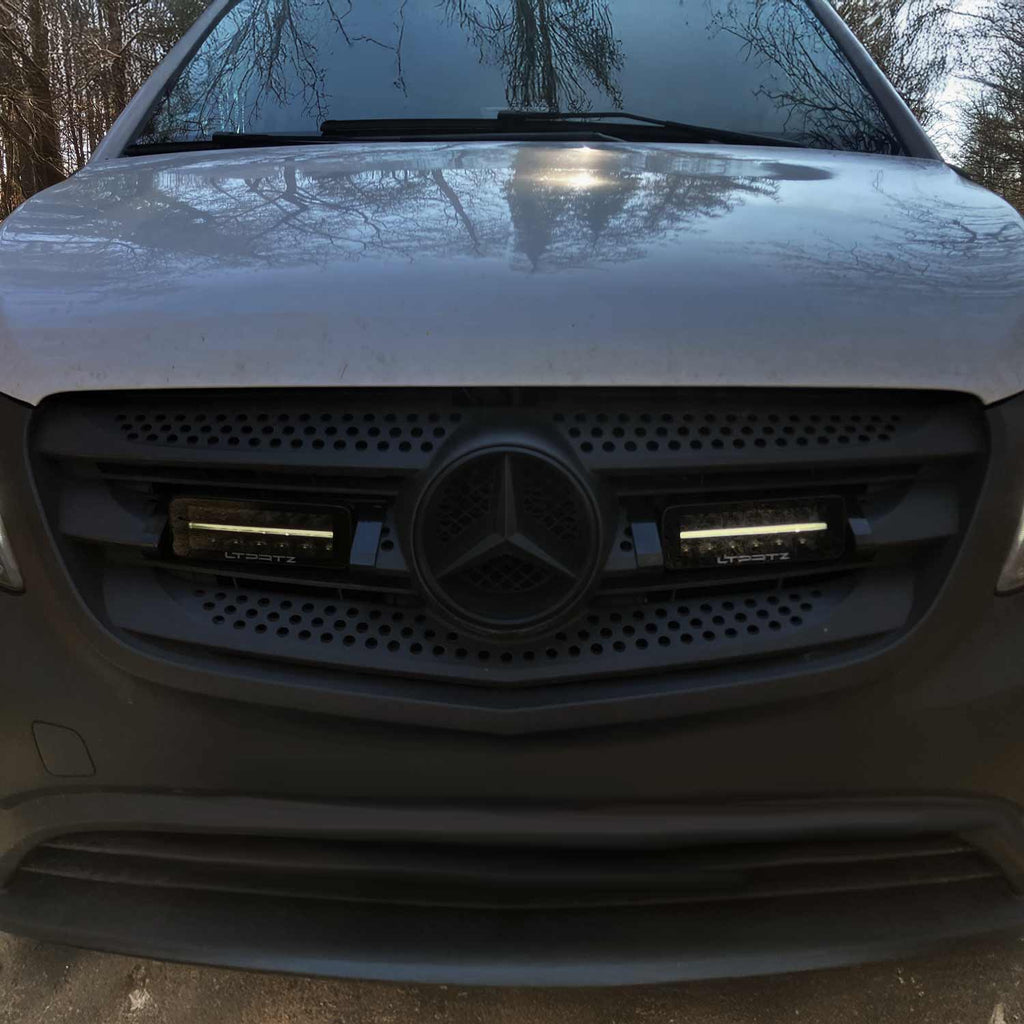

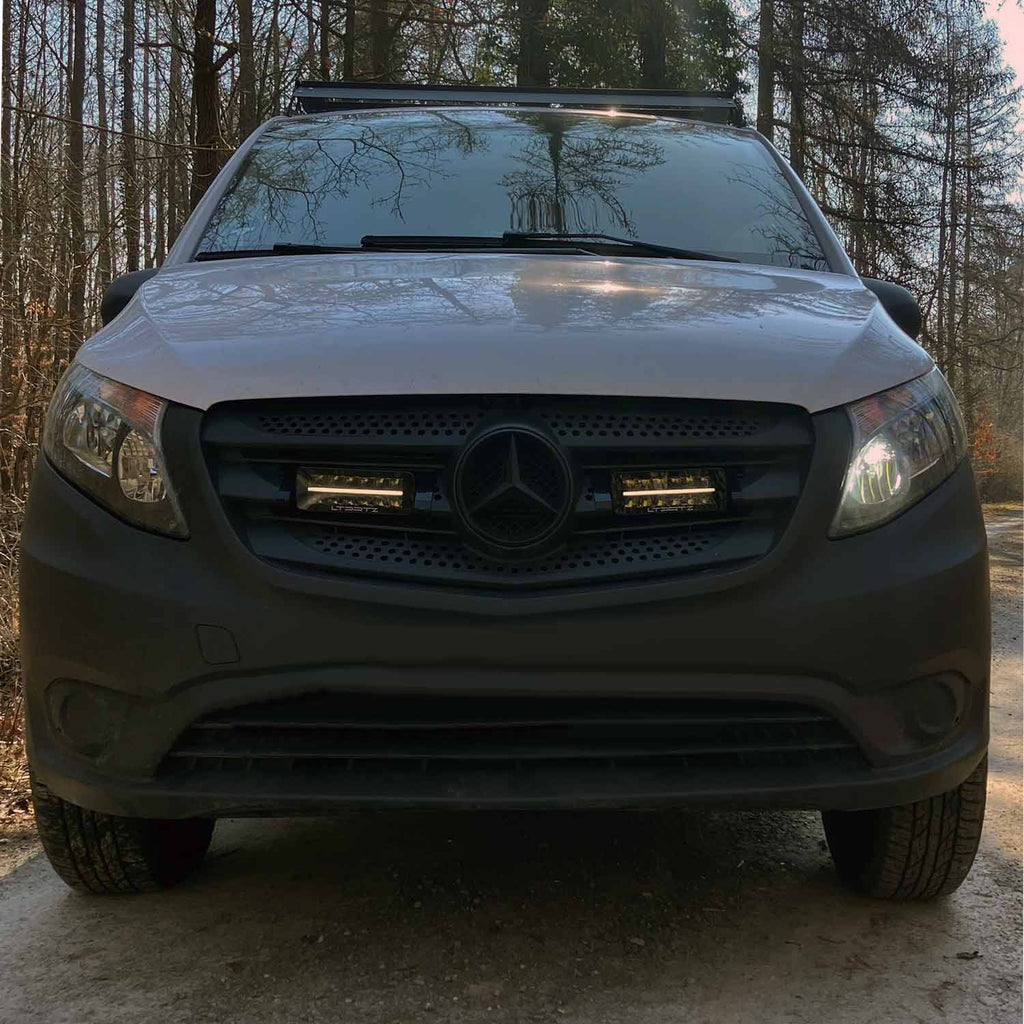

LTPRTZ MB Vito W447 (2014-2019) Grille Integration Kit Standard

With the help of the detailed installation instructions, you can install your headlights yourself in your vehicle's grille.

Brackets:

• high-quality and sturdy ABS brackets made with 3D printing
• paintable
• sanded and primed.
• must be painted in the color of the grille
• UV and weather resistant
• suitable for MB Vito W447 (2014 - 2019)
• Scope of delivery: four brackets for two headlights
• Brackets have elongated holes for aligning the headlights.

Headlights:

• 3rd generation of our popular TRX series
• with white position light strip (with E-approval)
• with Offroad Boost-mode function; Boost-mode can be activated off public roads.
• the innovative anti-glare reflectors combine focused spot and
  wide-beam flood elements for homogeneous illumination of the entire field of vision
• with 360° side mounts and sliding feet on the rear of the housing
• complete with mounting material and DT socket and plug
• unique stealth design without screws on the front
• Area of use: public roads

Technical data:

• High beam power: R149: 22.8W | Boost mode: 47.6W
• Position light power: R148: 6W
• Operating voltage: 10-30 V
• Protection class: IP 67
• LED Chips: 12 pieces x 5W
• Luminous flux (effective): 1,540 lm | Boost mode: 3,238 lm
• Housing color: black
• Color temperature: 5800K
• Material: extruded aluminum housing
• Lens material: polycarbonate
• Mounting: robust aluminum bracket
• Light distribution: Spot 10°
• Range: 658 m (0.25 Lx), 329 m (1 Lx)
• Homologation: ECE R149 | R10
• Reference number: 25
• Dimensions L x D x H (housing): 20.36 x 6.71 x 7.0 cm

Wiring harness:

Universal relay cable set for two high-power LED lights with 4-pin DT plugs

• only fits headlights LP-TRX3-7E
• with two included toggle switches or optionally for connecting the Can Bus high beam control
• Toggle switch 1 for switching the high beam (a separate measurement line must be pulled from the dashboard to illuminate the switch.)
• Toggle switch 2 for switching the position light
• Connectors for connecting the switches included
• Crimp connectors for extending the cables included
• 40A high-power relay and fuse holder with 30 A plug-in fuse
• Cable length: 3 m
• 2x Deutsch 4-pin connectors
• Battery + and - ring terminals for M8

Scope of delivery:

• 2x TRX 3.0 7 inch
• 4x ABS bracket
• 1x cable set
