LTPRTZ ORKAN 9 inch 140° - Driving Light E-Mark Approved
€269,00
Skip to product information
LTPRTZ ORKAN 9 inch 140° - Driving Light E-Mark Approved
€269,00
Taxes included.
Shipping calculated at checkout.
Article number:
LP-DLSS9-E-B
Lieferzeit
9-inch High Beam Headlight ORKAN 140° ALL BLACK
Protected against:
- Reverse polarity
- RFI/EMC interference
- Voltage and current surges
Special features
- shockproof
- waterproof
- UV-shielded
- anodized polyester powder coating
- efficient polycarbonate lens reflector
- moisture equalizing membrane
- ambient temperature: -40° - +60°
- high beam certification
- range: 874 m (1 lux), 1,748 m (0.25 lux)
- reference number: 30
- connection: 4-pin DT connector
Scope of delivery:
1x DLSS9-E-B
1x mounting screws with anti-theft protection
| Technical Data | ||||||||
| Input Voltage | 9-36V | |||||||
| Light Source | 41x OSRAM P7 5W LED Chips | |||||||
| Power Consumption | 205W | |||||||
| Luminous Flux (raw/eff) | 11,058lm / 7,964lm | |||||||
| Color Temperature | 5700-6000K | |||||||
| Beam Pattern | 140° | |||||||
| Protection Class | IP68 | IP69K | |||||||
| Lens | shatterproof polycarbonate | |||||||
| Housing | die-cast aluminum | |||||||
| Mounting | upright | pendant | |||||||
| Connection | potted Deutsch connector | |||||||
| Weight | 2.5 kg | |||||||

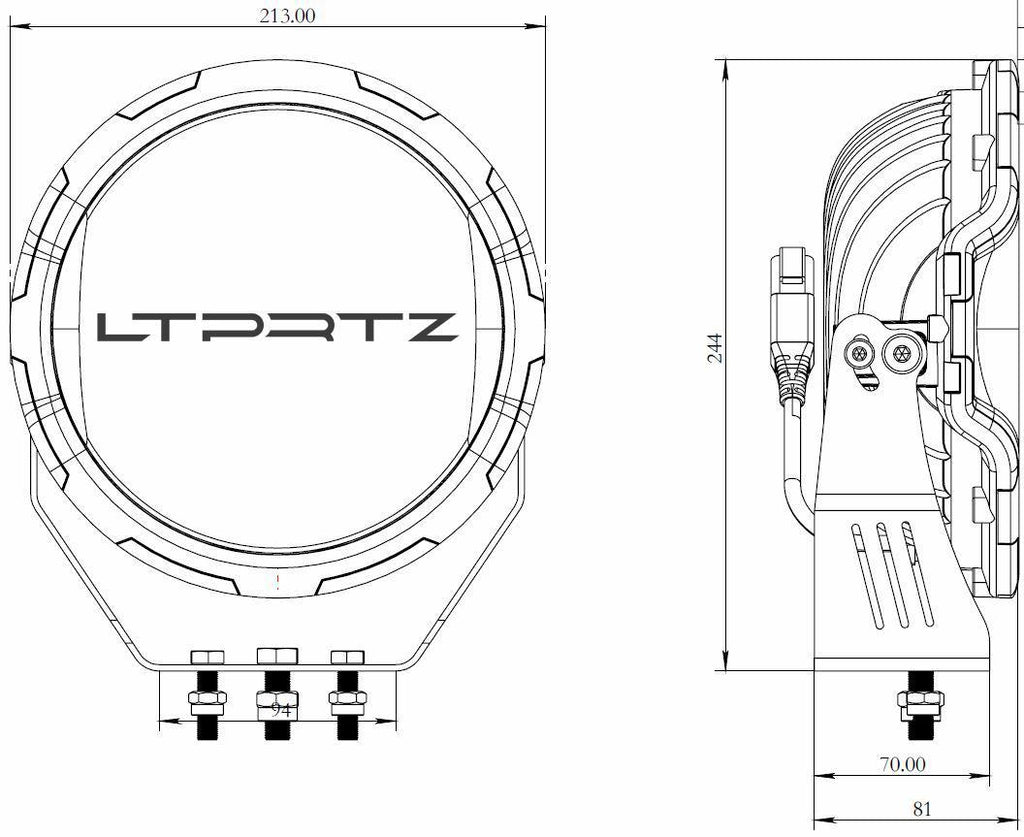

| Dimensions | 213.0 x 81.0 x 244.0 mm | |||||||
| Homologation: | ECE 112R | 10R | |||||||
