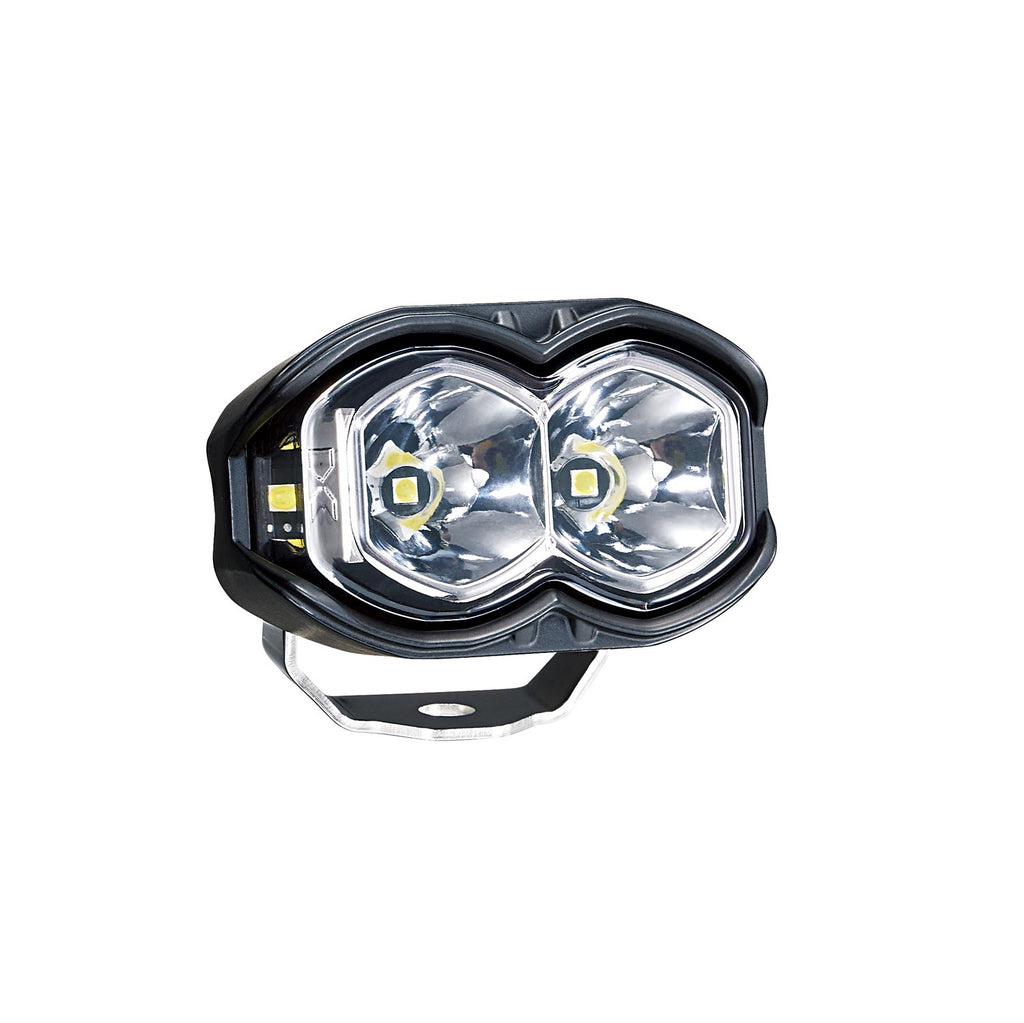

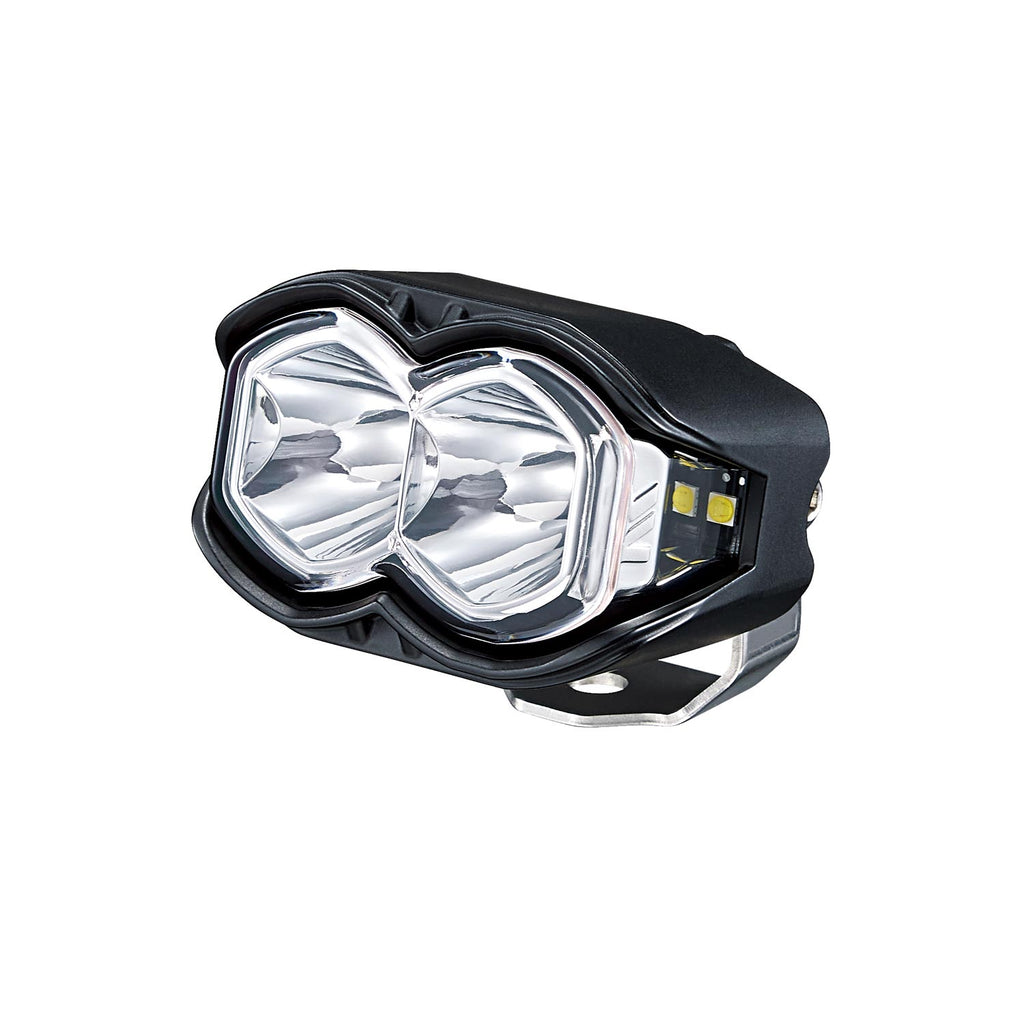

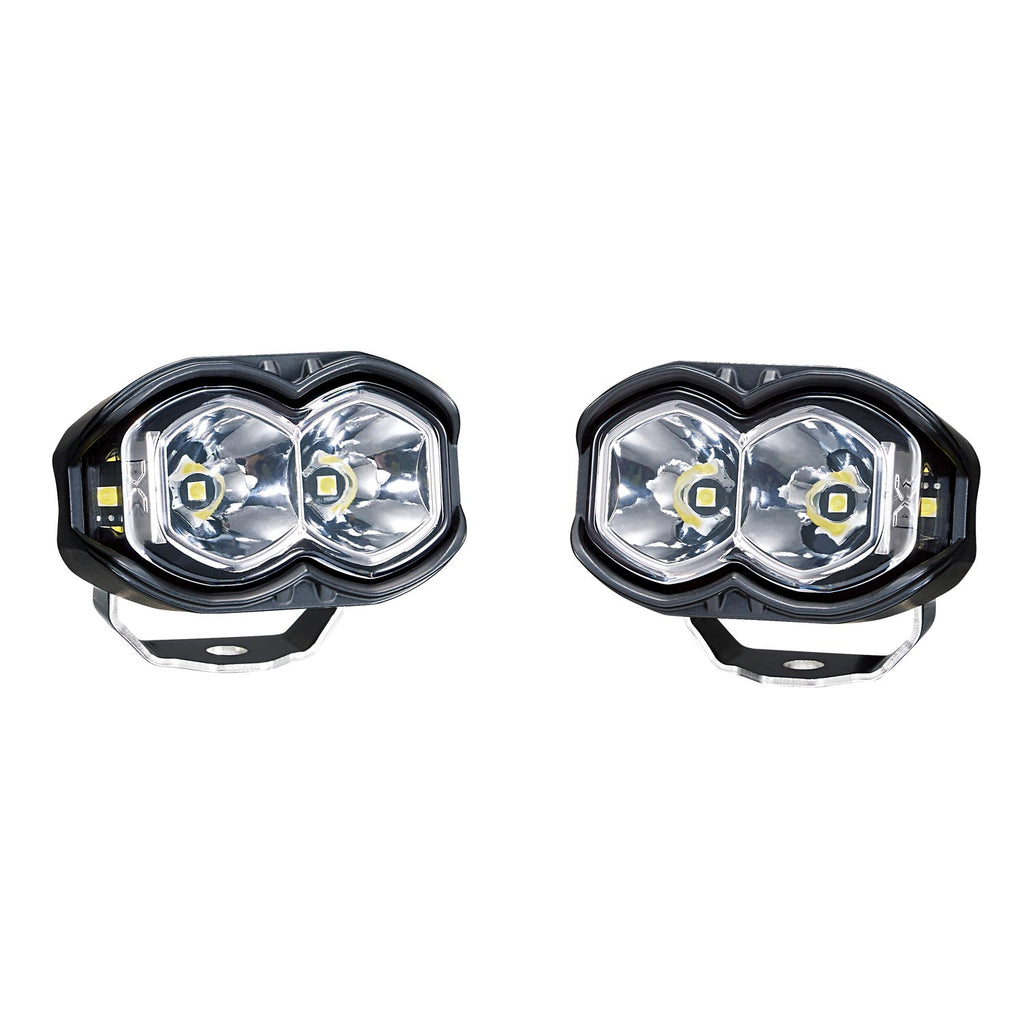

LTPRTZ RAVE-S2 3-inch Work Light – Compact. Robust. Powerful.

When every inch counts for visibility and reliability, the LTPRTZ RAVE-S2 delivers exactly what you need: maximum light output in minimal space. With its powerful LED technology and robust aluminum housing, this 3-inch work light is the ideal companion for the toughest jobs – whether off-road, on construction sites, or in agriculture.

Compact Power with Clear Vision

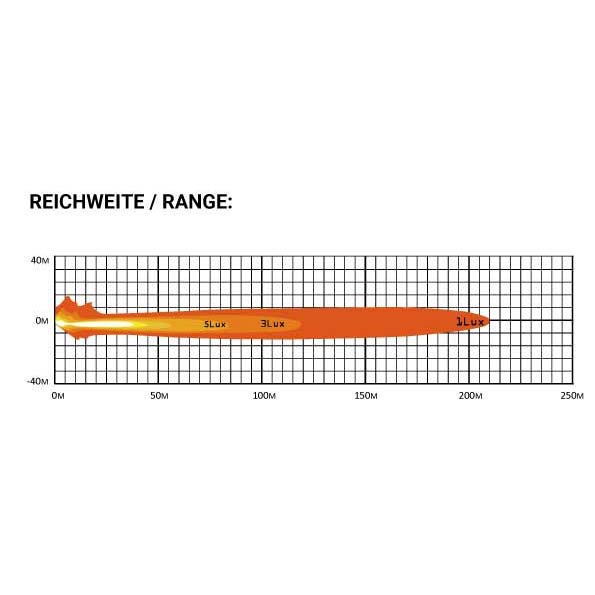

The RAVE-S2 impresses with 2,370 raw lumens and a light intensity of 43,000 cd, generating a uniform work light – perfect for reliably illuminating any environment. Despite its compact size of just 75 x 50 x 59.6 mm, it contains pure efficiency and durability. Thanks to its precise working light beam pattern, the headlamp provides a homogeneous, wide light field – exactly where you need it.

Built for Extreme Conditions

Whether dust, mud, rain, or high-pressure cleaners – the RAVE-S2 is protected to IP68 / IP69K, making it completely waterproof and dustproof. The die-cast aluminum housing ensures optimal heat dissipation and maximum lifespan, while the hardened polycarbonate lens with hard coating remains resistant to scratches and stone chips.

Technical Highlights

• Beam Pattern: Working Light
• Light Output: 2,370 lumens (raw)
• Light Intensity: 43,000 cd
• Voltage Range: 9–33 V DC
• Power Consumption: 15 W at 12 V / 24 V
• Approval: EMC R10
• Protection Class: IP68 / IP69K
• Housing: Die-cast aluminum
• Lens & Reflector: Polycarbonate (hardened)
• Mounting Bracket: Stainless steel
• LEDs: 3 high-performance LEDs
• Connector: 2-pin DT connector
• Dimensions: 75 × 50 × 59.6 mm
• Weight: 0.3 kg

Compact Format. Big Light.

Whether as an auxiliary light, mounting light, or universal work light – the RAVE-S2 combines powerful luminosity with durability in proven LTPRTZ quality. Small in design, big in performance – for clear vision on every mission.
