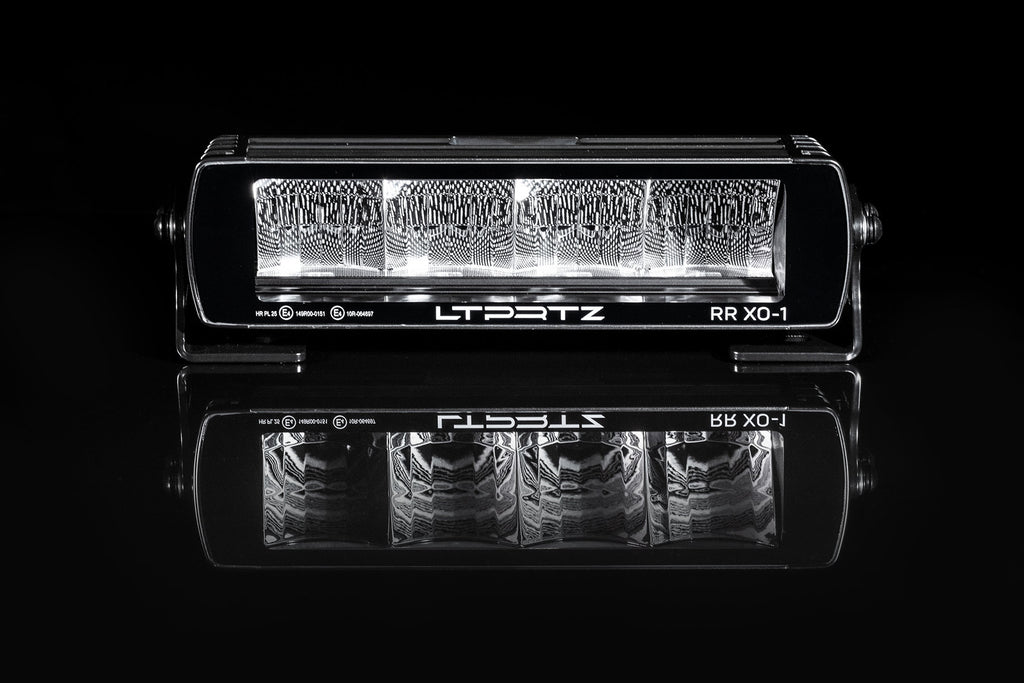

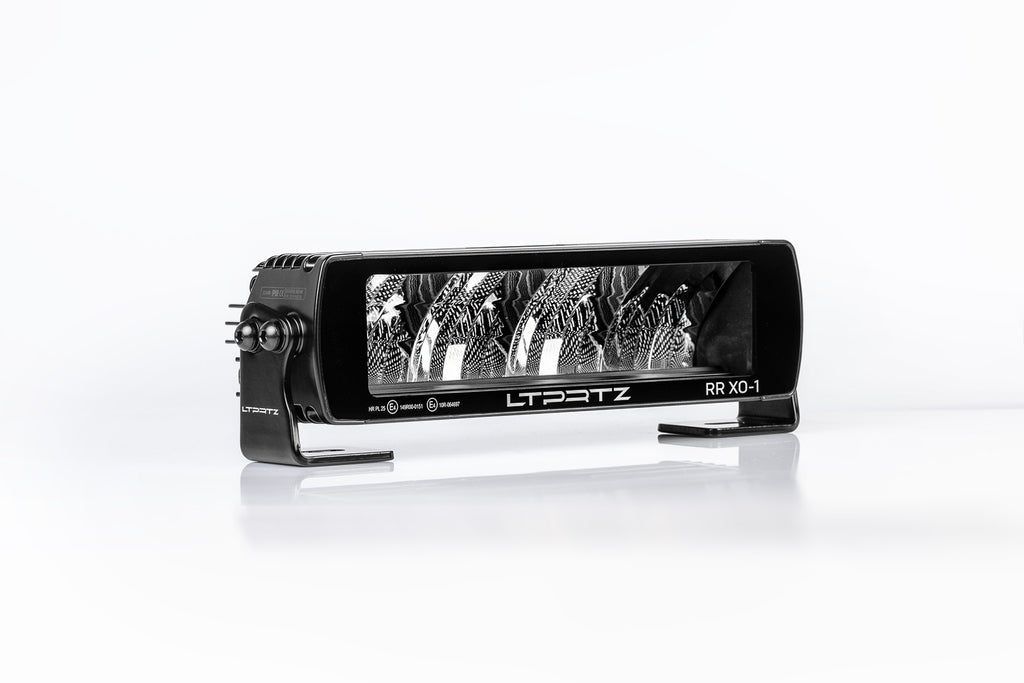

REAPER 12 Inch Driving Light Bar

This compact driving light reaches almost 500m range in power mode.
Switch to on-road mode and use the pair-mounted Reaper light bar in addition to your normal high beam on the vehicle, in compliance with STVO. No registration required thanks to ECE approval.

Technical Information:

• Voltage Range: 9-36V
• Current Consumption (A) for High Beam at 13.2V (or 12V):
  Full Power: 5.45A @12V
  R112 (Ref. 25) Power: 1.92A@12V
• Power for High Beam at 13.2V (or 12V):
  Full Power: 67.58W @12V
  R112 (Ref. 25) Power: 21.8W@12V
• Number and Type of LEDs: Domestic: 5520
• Theoretical Lumens at 13.2V (or 12V):
  Full Power: 2800LM
  R112 (Ref. 25) Power: 1030LM
• Color Temperature High Beam: 5500-6500K
• Range (1 Lux) at 13.2V (or 12V):
  Full Power: 470m
  R112 (Ref. 25): 290m
• Candela at 13.2V (or 12V):
  Full Power: 230,000
  R112 (Ref. 25): 105,000
• Cable Length: 55cm
• Connector: DTP
• Protection Class: IP68

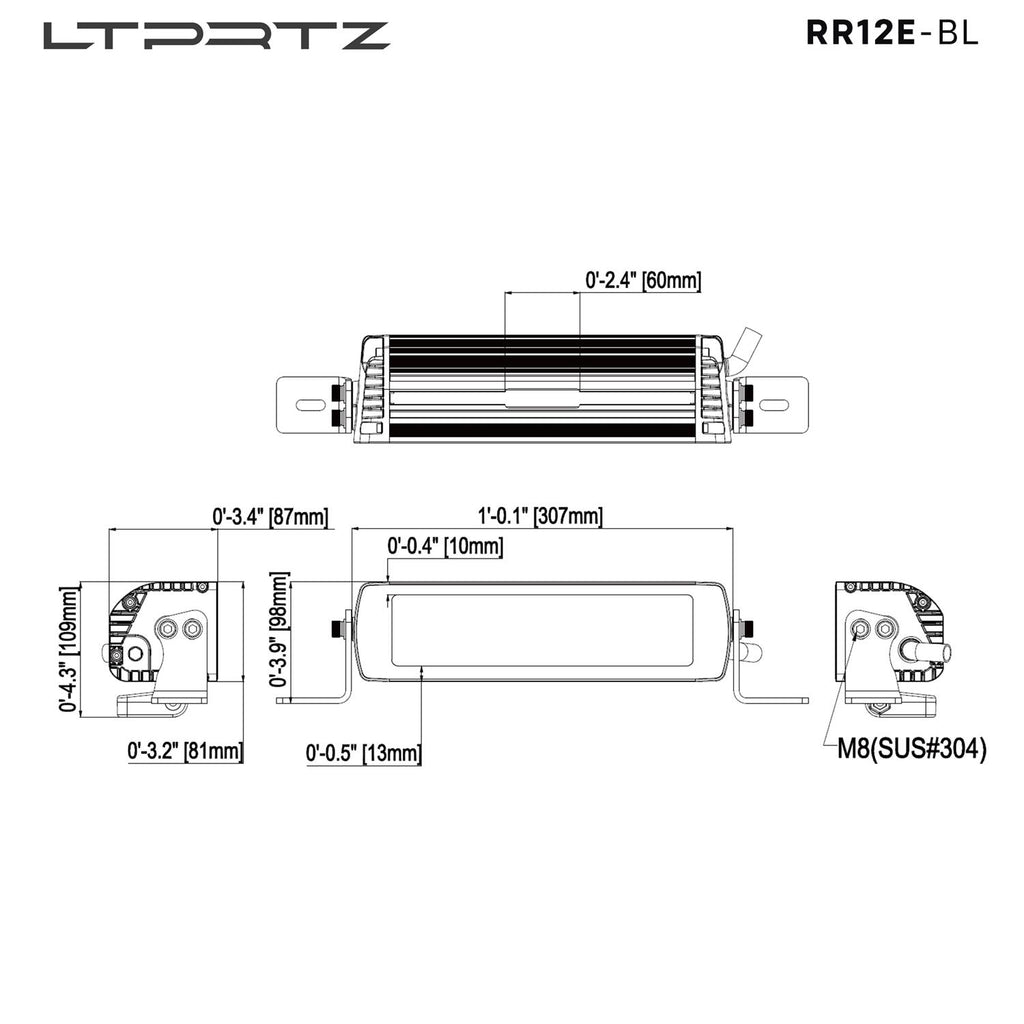

• Dimensions: 307x81x87mm
• Background Light Color: white
• Homologation: ECE R112 Ref. 25 | ECE R10

Scope of Delivery:

• 1x Driving Light Bar Reaper 12 Inch

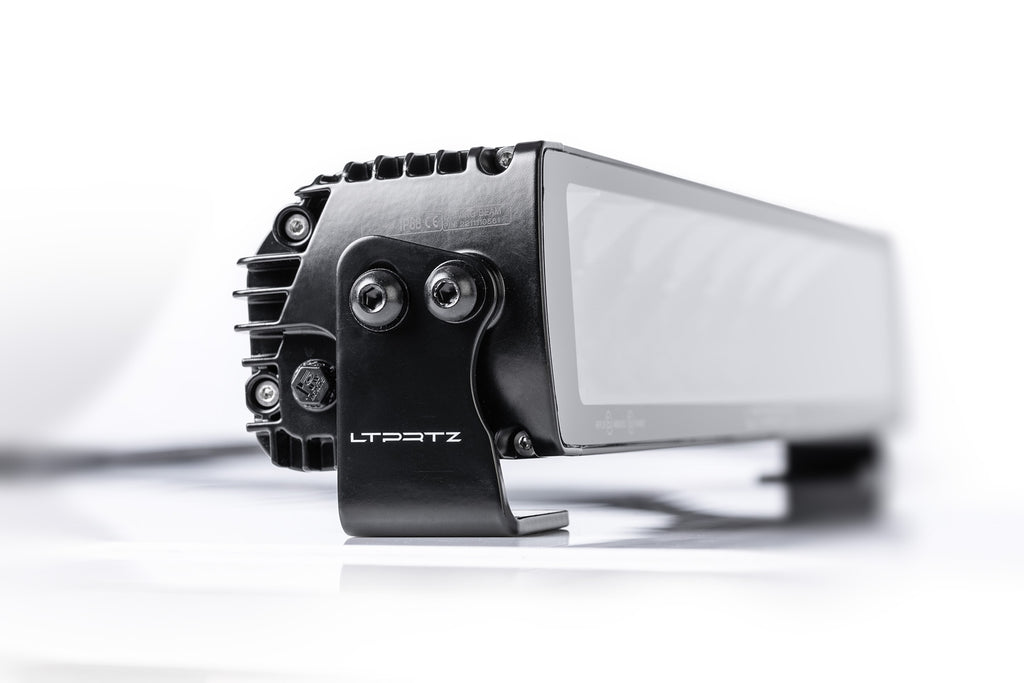

• Set of mounting material consisting of:
  2x Sliding rear bracket
  2x Side adjustable bracket

Wiring Diagram:

DT 4-pin connector. The mating connector is included:

• Phase 1: Ground -
• Phase 2: Background light white
• Phase 4: High beam +
• Phase 5: ECE mode (blue separate cable)
