LTPRTZ Economy Set: 2x ORB-X 9 Inch - Driving Lights + Cable Harness (6-Pin)

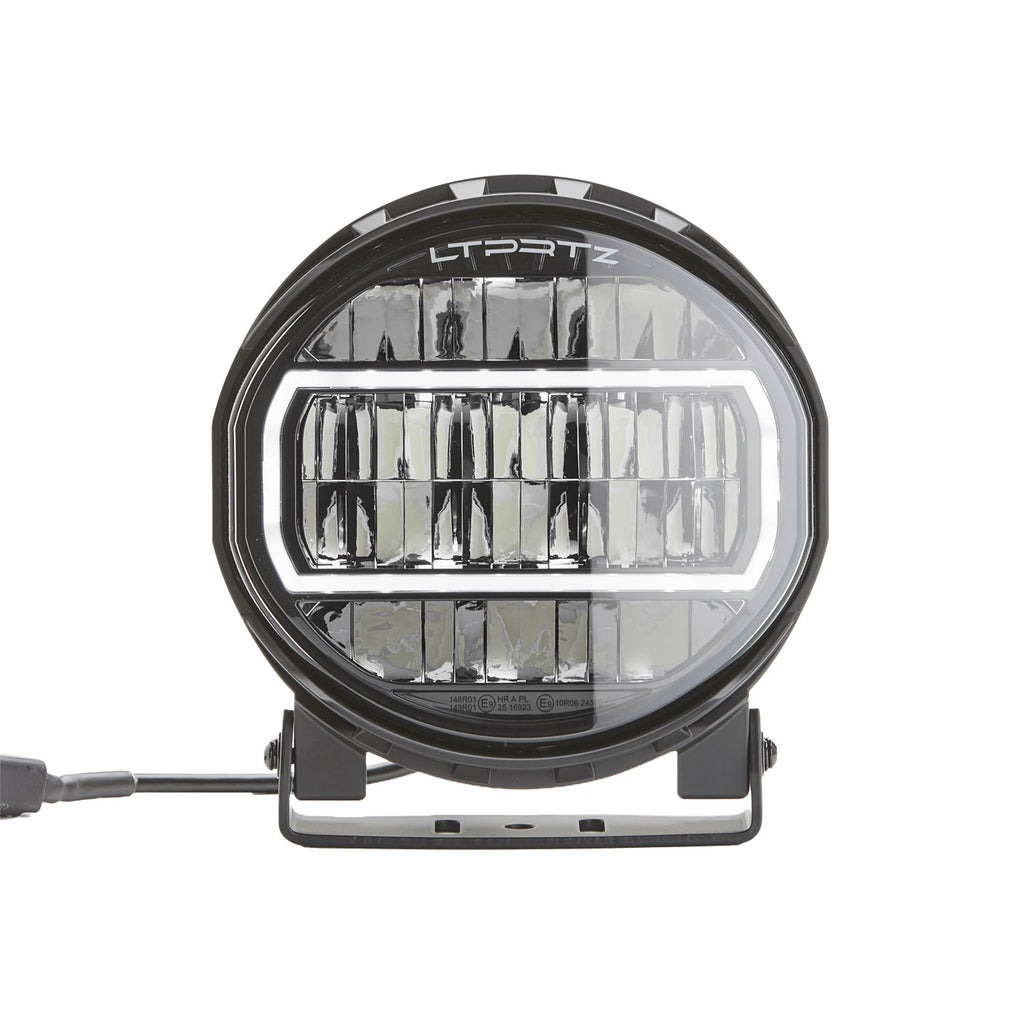

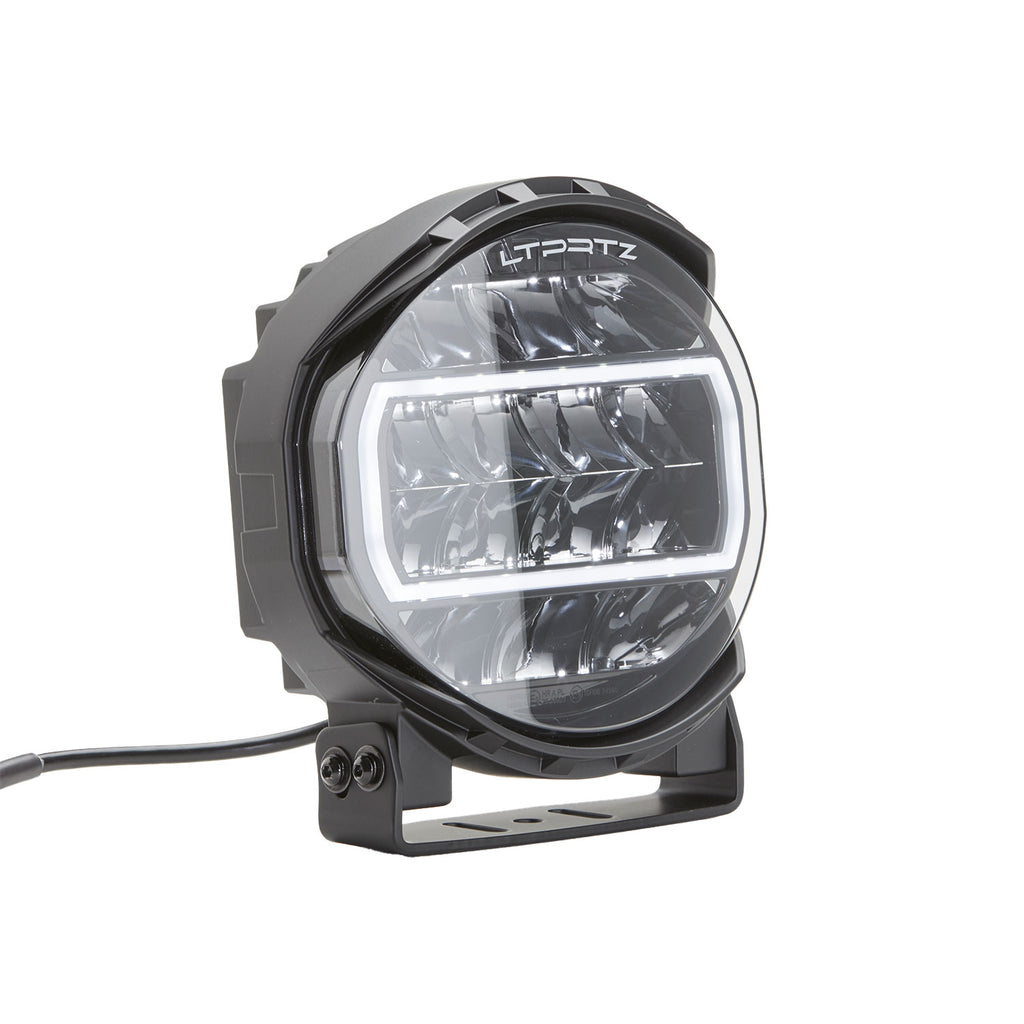

ORB-X 9 Inch – Driving Light with E-Approval

The ORB-X 9 Inch is a powerful LED driving light, developed for the highest demands in challenging environments. With ECE approvals, exceptional light output, and robust construction, this light is perfectly suited for off-road vehicles, commercial vehicles, and demanding applications.

Technical Specifications

• Light output:
  • Normal mode: 3,800 lumens
  • Boost mode: 11,900 lumens

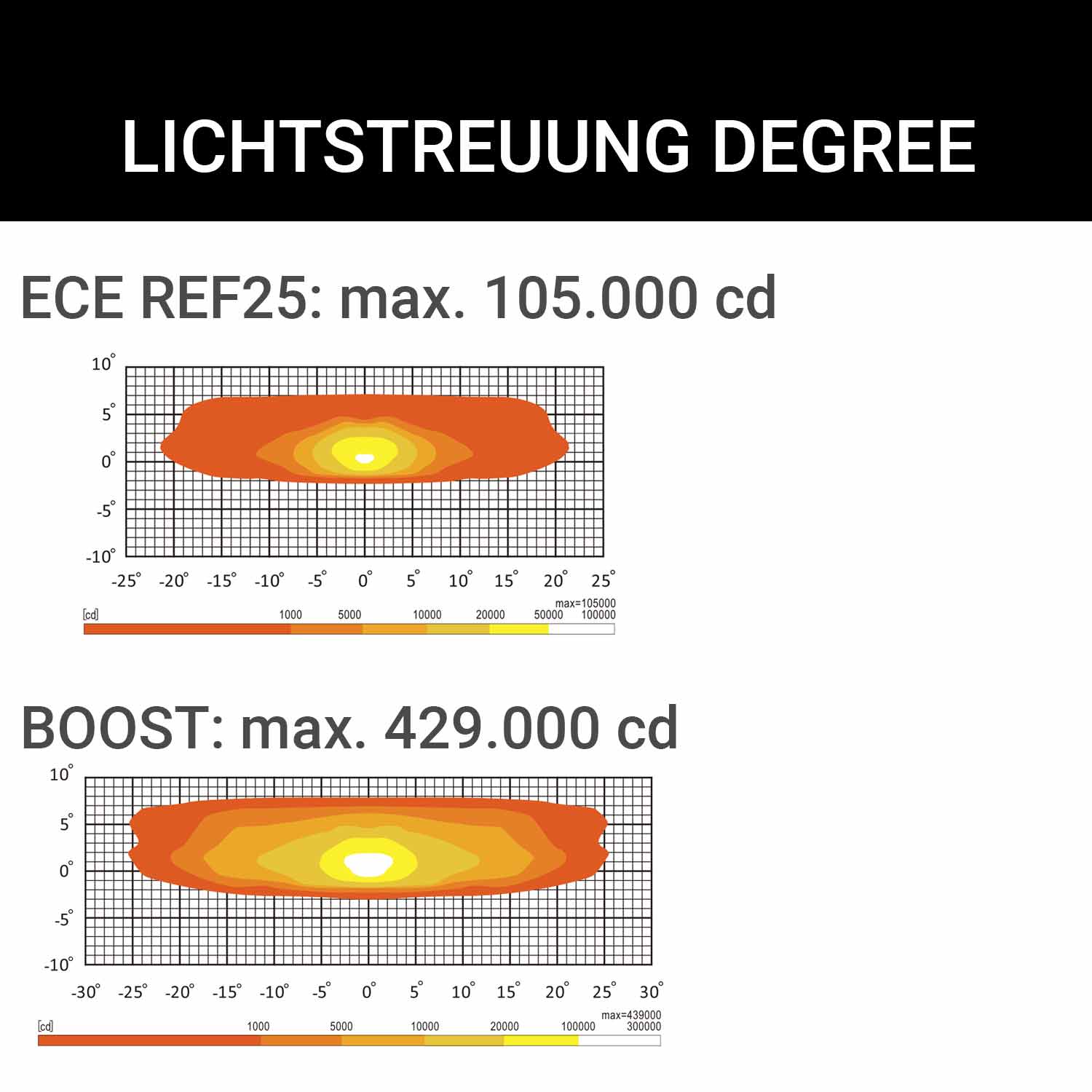

• Luminous intensity (Candela):
  • Normal mode: 105,000 cd
  • Boost mode: 439,000 cd

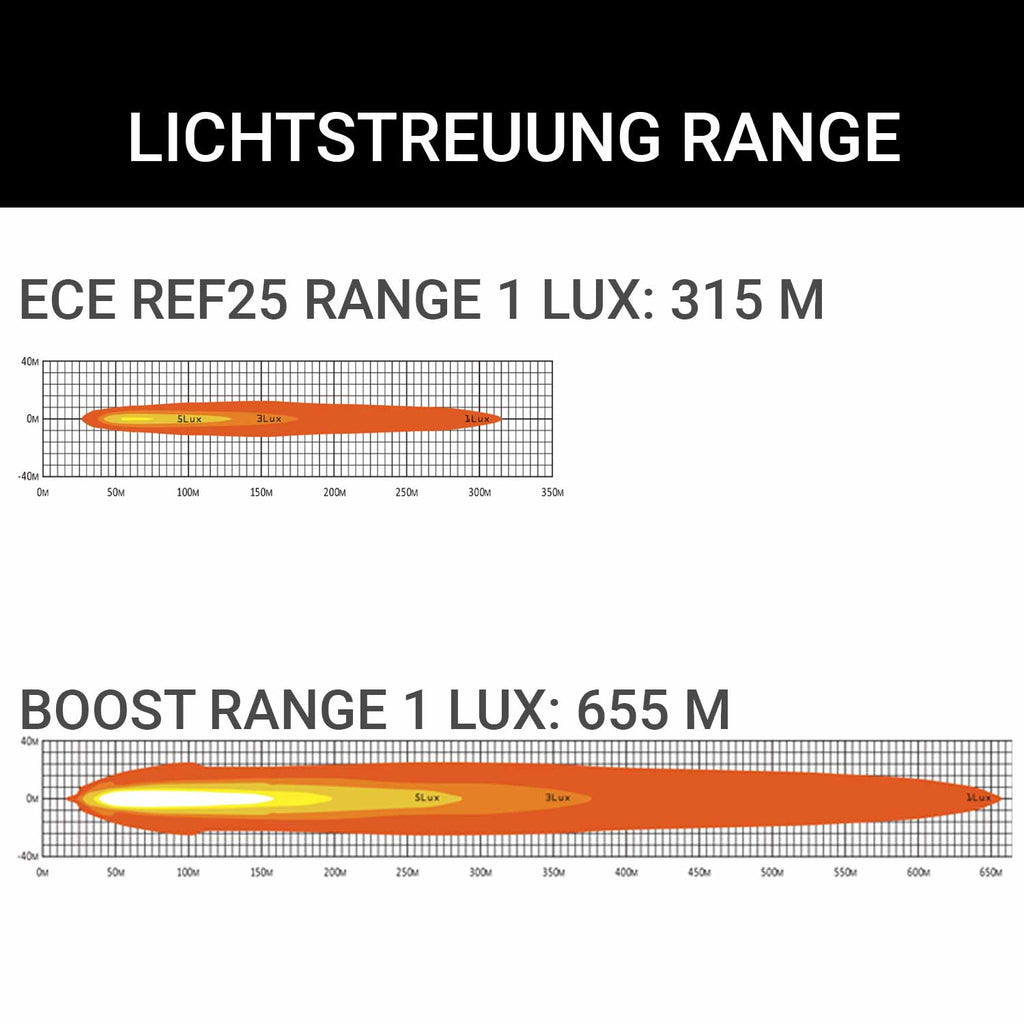

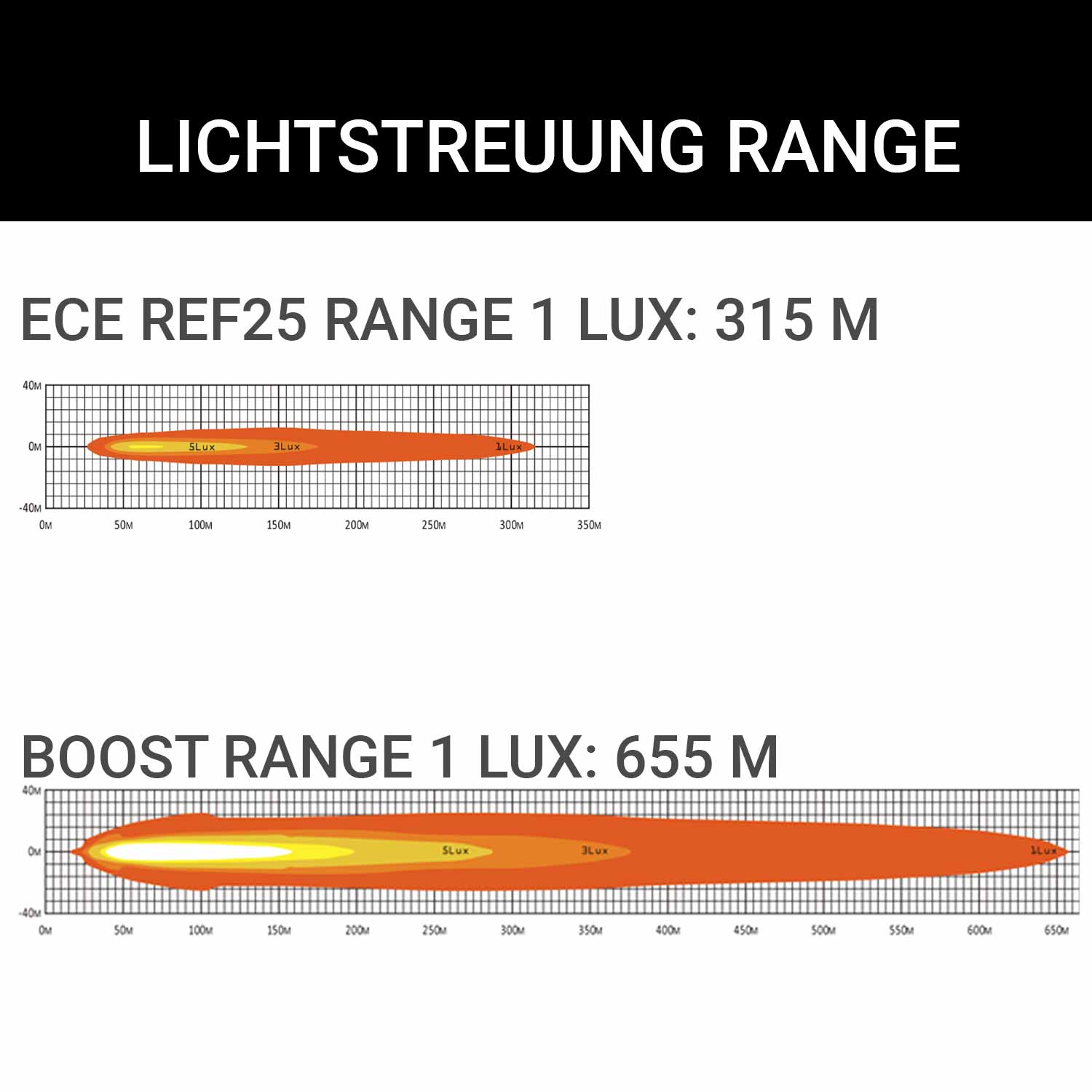

• Range (1 Lux):
  • Normal mode: 315 m
  • Boost mode: 655 m
• Reference number: 25
• Voltage range: 9 – 33 V
• Current consumption 12 V
  • Normal mode: 20.5 W
  • Boost mode: 112 W
• Current consumption 24 V
  • Normal mode: 22.4 W
  • Boost mode: 99 W
• ECE approvals: R149 (high beam) R148 (position light) R10 (electromagnetic compatibility)
• Protection class: IP68 / IP69K – dustproof and high-pressure waterproof

Mechanical Properties

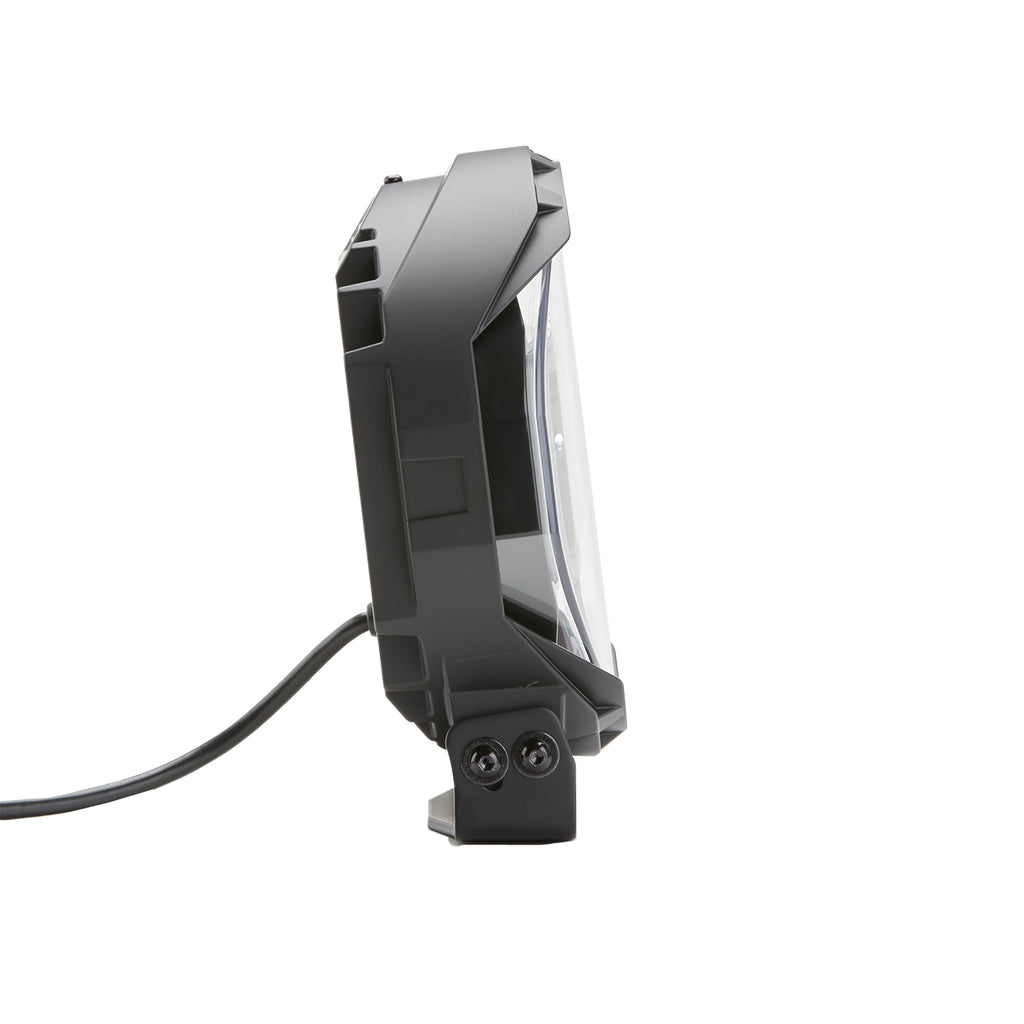

• Size (W x H x D): 212 x 211 x 80 mm
• Weight: approx. 2.3 kg
• Connector: 6-pin DT connector (Deutsch type), mating connector included

Materials & Construction

• Lens: Hard-coated polycarbonate
• Reflector: High-quality polycarbonate

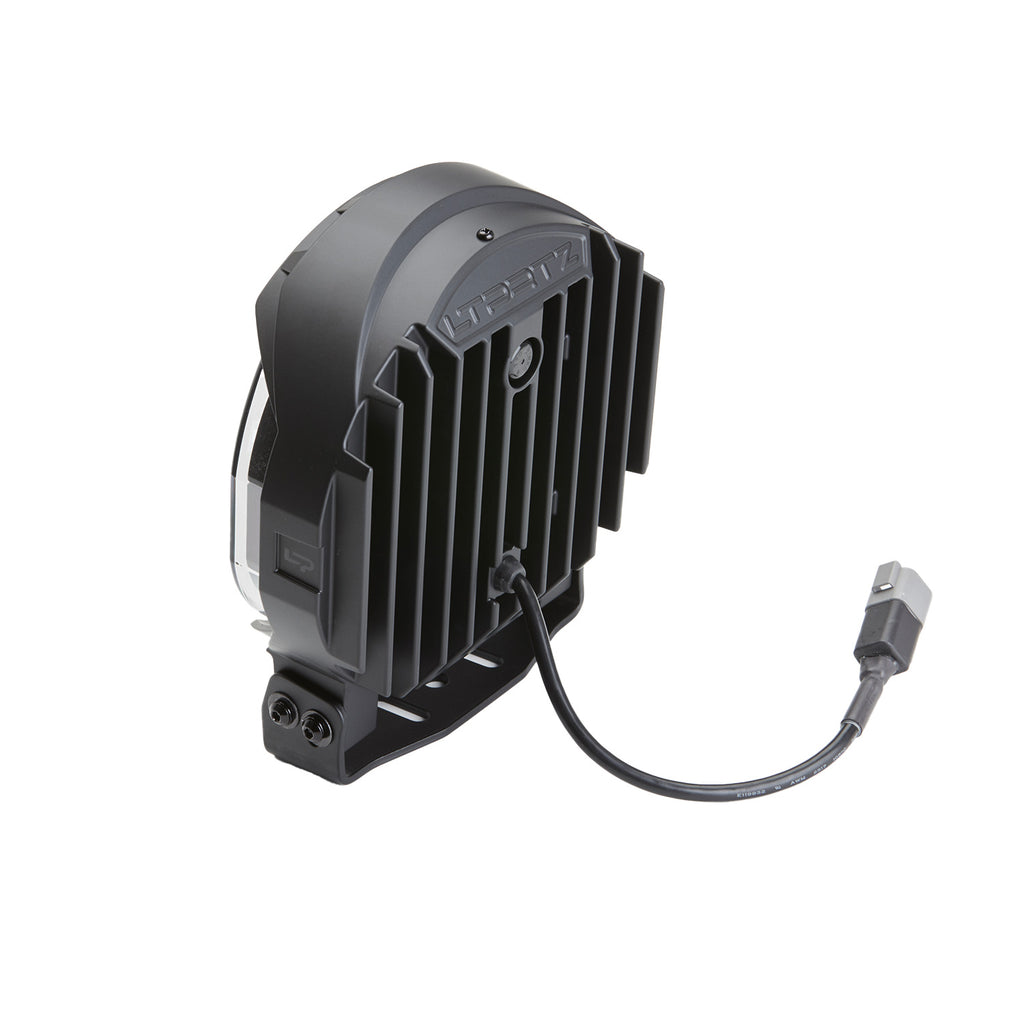

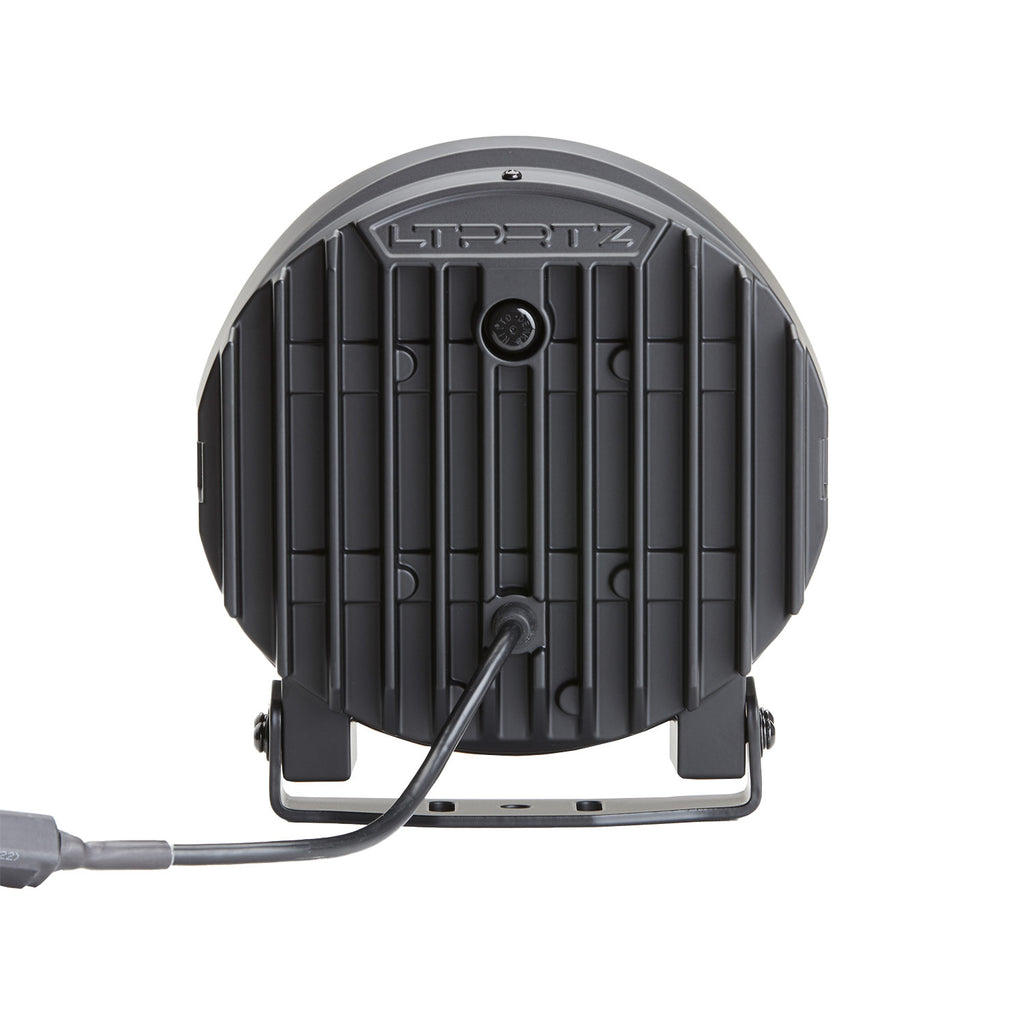

• Housing: Die-cast aluminum for optimal heat dissipation and durability
• Mounting bracket: Powder-coated stainless steel – corrosion-resistant and vibration-proof
• LEDs: High-performance LEDs with long lifespan and high efficiency
