LTPRTZ Savings Set: Snow Plow Headlights

LTPRTZ Snow Plow and Work Light Complete Set

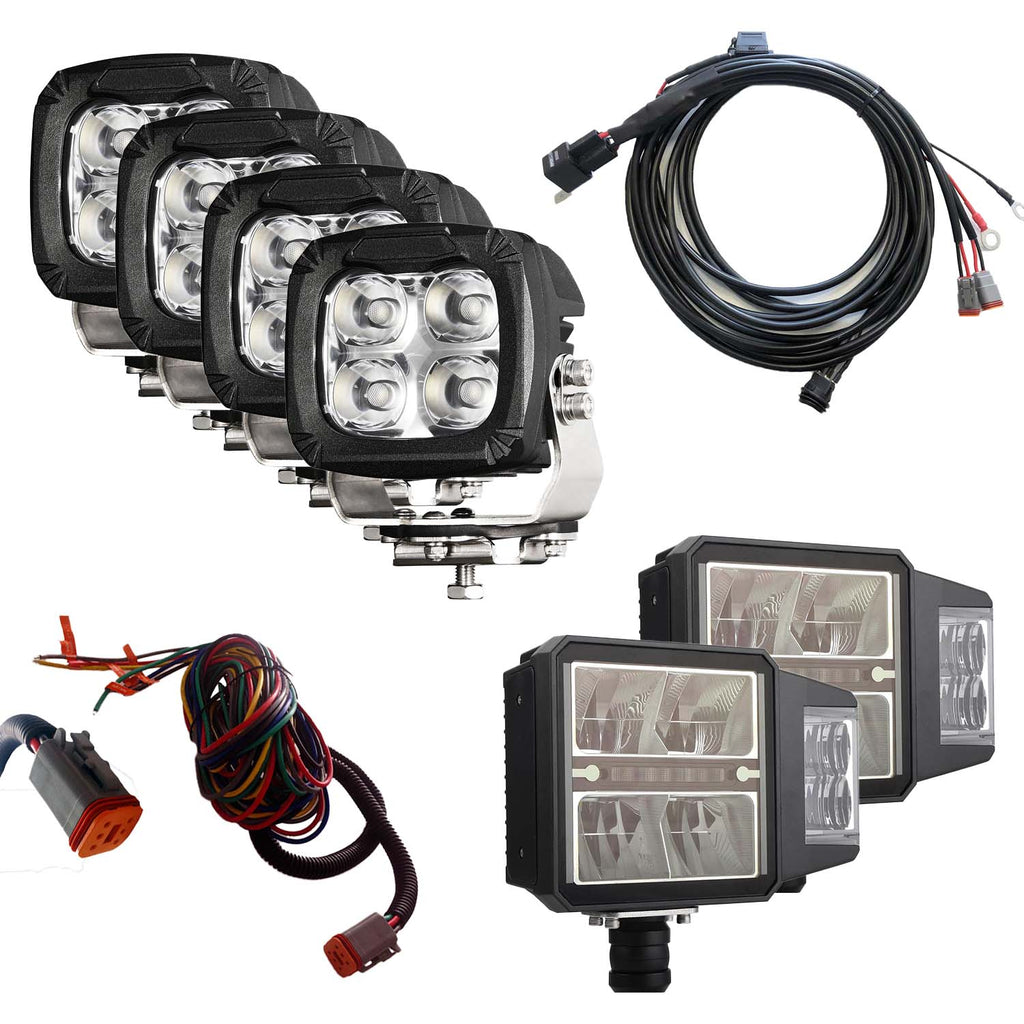

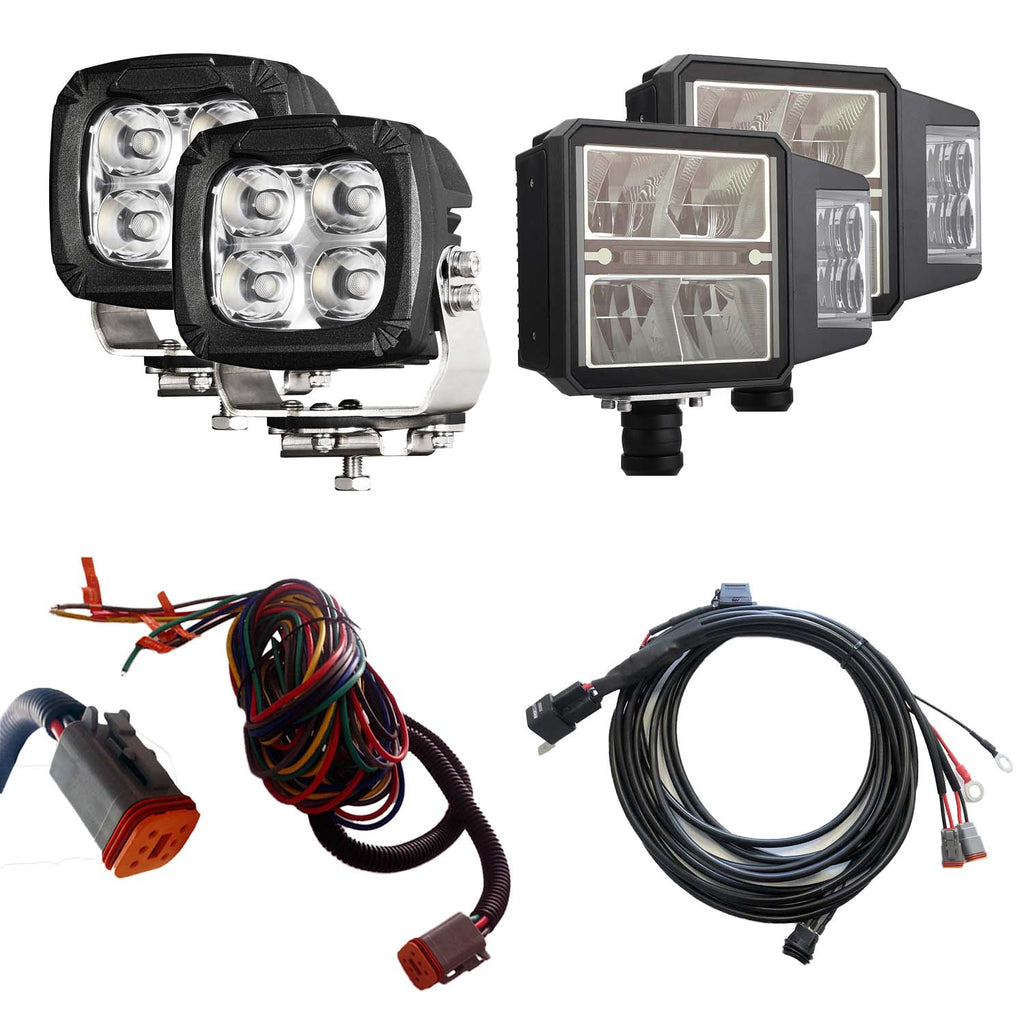

Contents of the Set:

• 2x Snow Plow LED Headlight Flex Blink Gen 2, ECE certified
  These flexible and powerful snow plow headlights ensure clear illumination and improved visibility of your vehicle in all weather conditions. ECE certification guarantees high quality and safety in road traffic.
• 2x / 4x INDUSTRIAL Work Lights, heated and dimmable, 40 Watt
  With these heated and dimmable work lights, you are equipped for all operations – even in frost and poor light conditions. The 40-watt power in combination with the floodlight function ensures even illumination of large work areas.
• 2x LED Cable Set for Snow Plow Headlights SPL-02
  These robust cable sets offer a simple and reliable solution for connecting snow plow headlights. Specially designed for use in harsh environments, they ensure a stable and reliable power connection.
• 1x LED Relay Cable Set with 2 DT Connectors, 2-pin
  With this relay cable set, you can efficiently and safely control the connected LED headlights. Thanks to the 2-pin DT connector, the cable set is ideal for use with multiple light sources.

Advantages of the Set:

• Maximum visibility for safe operations in snow and darkness.
• High robustness and durability thanks to specially developed, weather-resistant materials and ECE-certified components.
• Versatile application possibilities in combination with snow plows, tractors, and other emergency vehicles.

With this set, you get everything you need for reliable and powerful vehicle lighting. Ideal for professional users and demanding outdoor operations.

Technical Data:

Snow Plow LED Headlight Flex-Blink Gen. 2 ECE

• With Anti-Icing Technology: Heated lens for clear vision in snowfall
• Approved for road traffic according to EC | Homologation:
  • R112 Low Beam & High Beam
  • R7 Position Light
  • R6 Turn Signal
  • R10 Electromagnetic Compatibility
• Patented anti-icing protection through heated lens
  Particularly suitable for low temperatures
• Reflective coating technology
• Multi-mounting system for turn signal - left, right, top
• Bottom and rear mounting option
• Over/undervoltage protection
• Reverse polarity protection
• IP68 with waterproof vent
• UV-resistant, shock-resistant
• Lifespan: over 50,000h
• Reference number: 12.5

Technical Specifications:

• Input voltage DC 10-30V light source
  • Position light 1.5W Lumileds LED
  • Low beam 20W ETI LED
  • High beam 38W ETI LED
  • Turn signal 20W Prolight LED
• Power consumption 12V/24V
  • Position light: 0.1A/0.05A
  • Low beam: 1.6A/0.86A
  • High beam: 13.2A/1.6A
  • Turn signal: 1.8A/0.8A
• Heated lens: 1.9A/0.8A
• Light output raw/effective
  • Position light: 160/130
  • Low beam: 1800/1530
  • High beam: 3600/2900
  • Turn signal: 400/340
• Light intensity
  • Low beam: 26875cd
  • High beam: 78125cd
• Color temperature: 5,500K
• Lens: tempered glass
• Housing: Die-cast aluminum alloy (ADC12) with heatsink
• Weight: 1.9 kg

INDUSTRIAL - Work light heated and dimmable flood 40 Watt

• Heated and dimmable
• Homologation: R10

Technical Specifications:

• Power (raw): 40W
• Operating voltage: 10-32 V
• Protection class: IP68 | IP69K
• LED Chips: OSRAM 4 pieces x 10W
• Light output (raw): 4,800lm
• Housing color: Black
• Color temperature: 6,000K
• Material:
  • Housing: Die-cast aluminum
  • Bracket: 304 stainless steel
• Lens material: Polycarbonate
• Mounting: Robust aluminum bracket
• Light distribution: Flood
• Range: 160m (1 Lx)
• Homologation: R10 CISPR 25 Class 5
• Connection: 2-Pin DT (mating connector included)
• Dimensions L x D x H (housing): 10.5 x 7.5 x 9.5 cm
