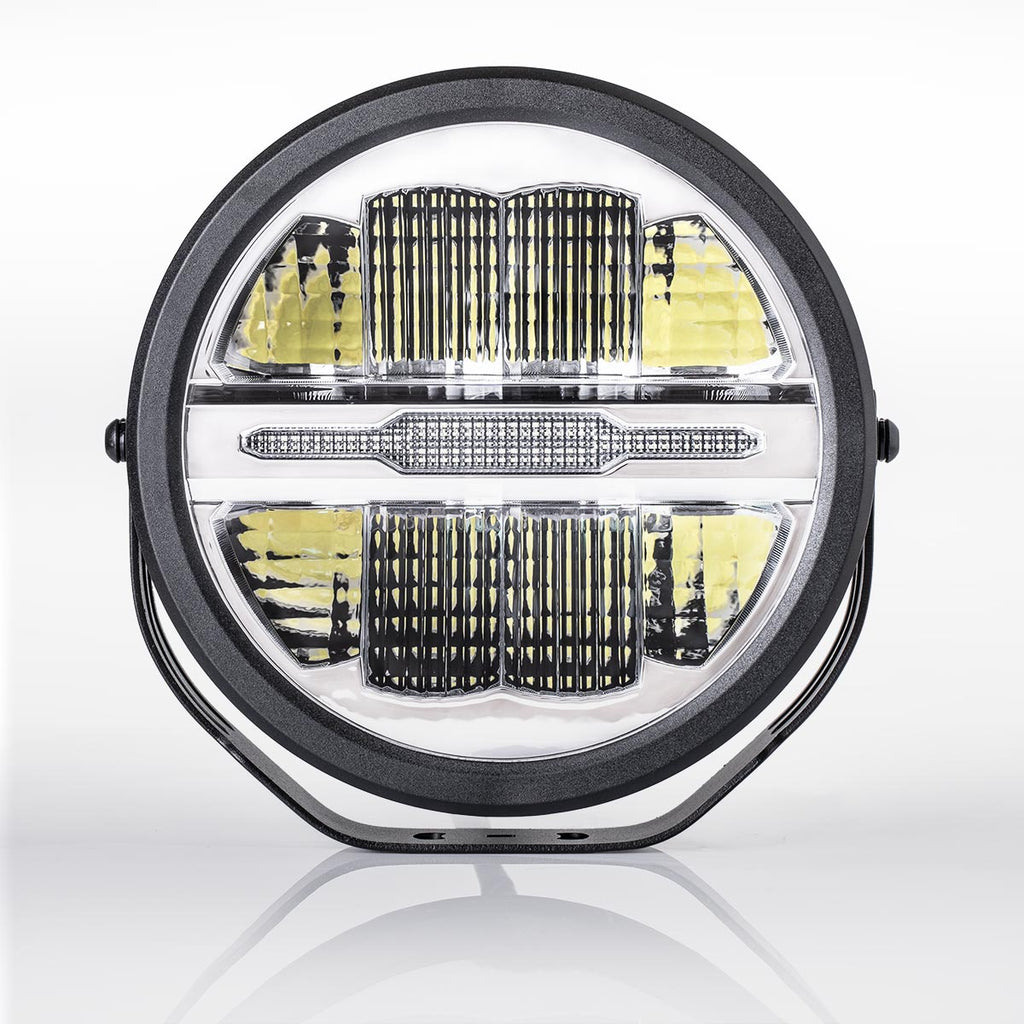

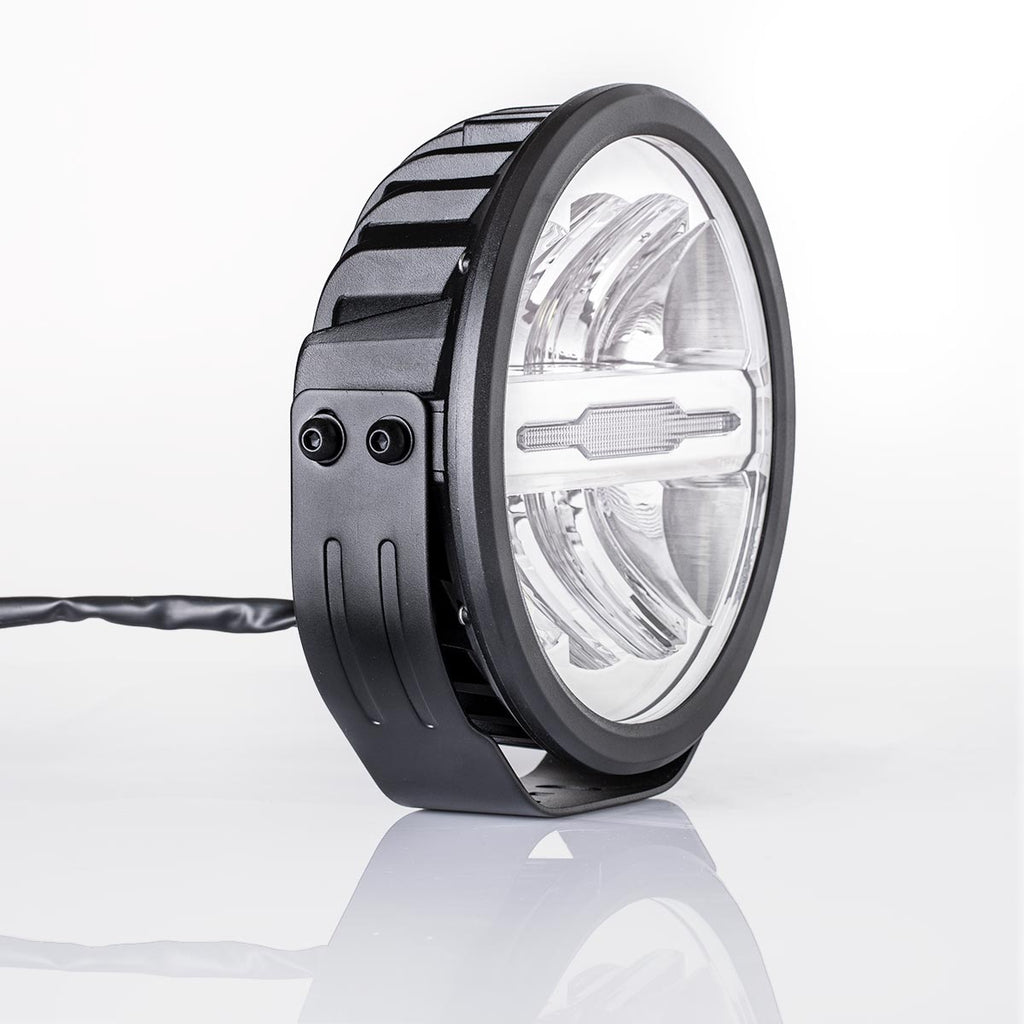

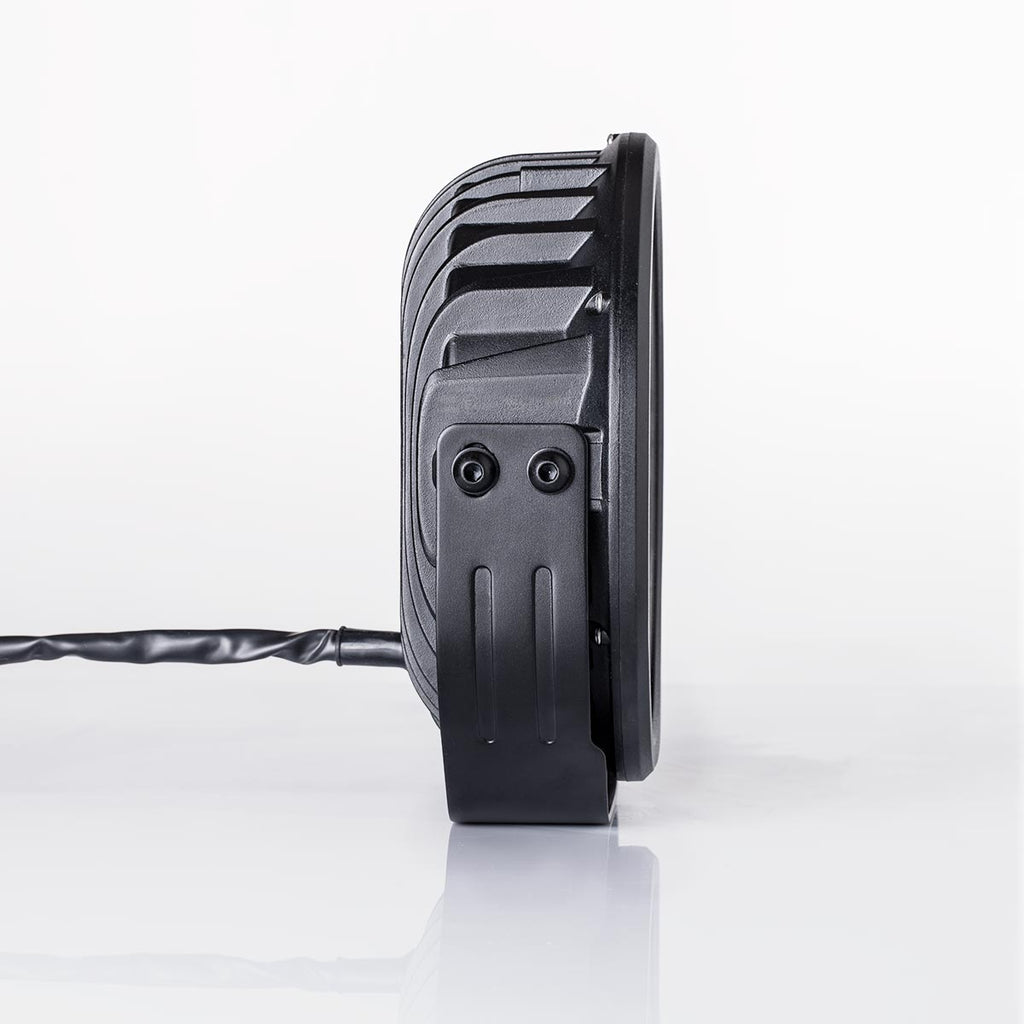

9-inch Driving Light UltraLux

Technical Information:

• Beam Angle: Horizontal: ±10° | Vertical: ±3.5°
• Voltage Range: 9-36V
• Current A @13.2V or 12V:
  • High Beam (offroad) Full Power: 5.21A @12V
  • High Beam according to ECE R112 Ref. 30: 2.95A @12V
• Consumption @13.2V or 12V
  • High Beam (offroad) Full Power: 62.16W |
  • High Beam according to ECE R112 Ref. 30: 35.40W

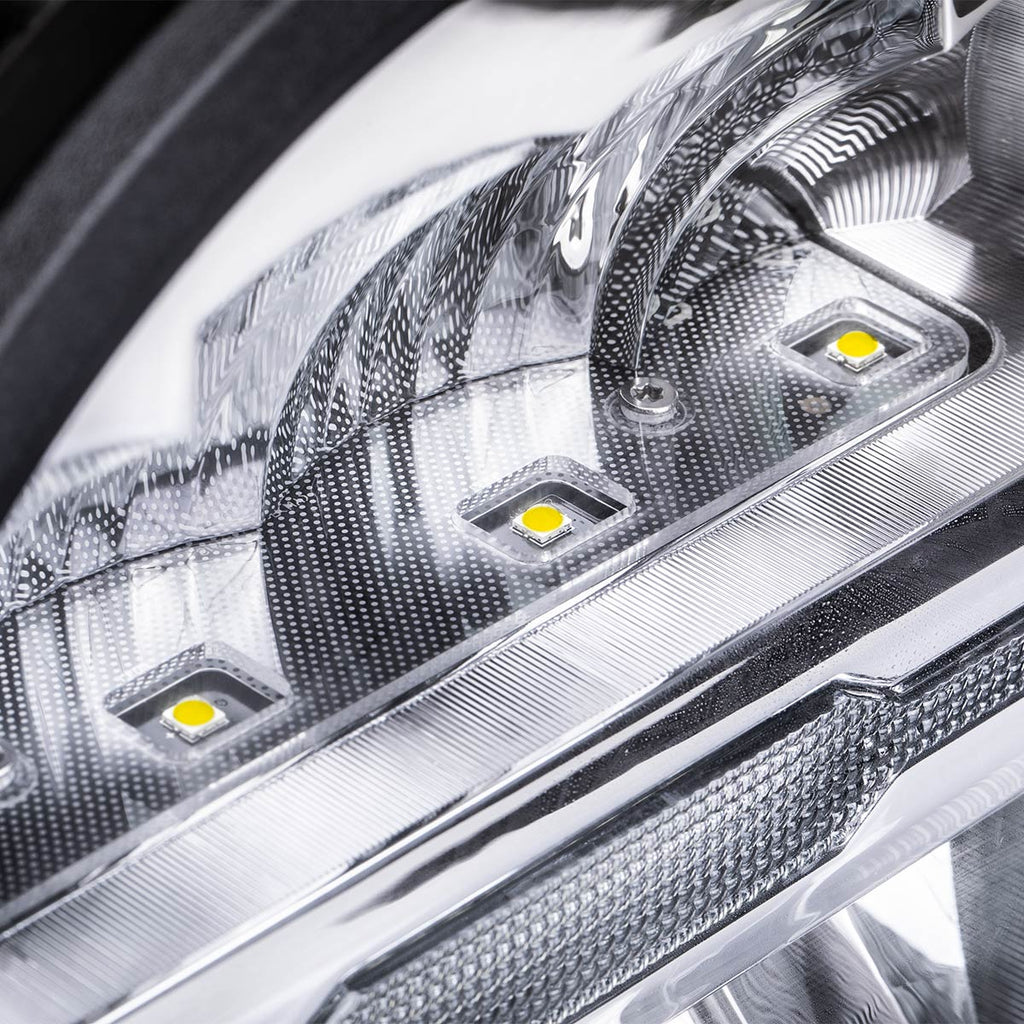

• Number and Type of LEDs (High Beam): Osram: P9*8pcs
• Lumens @13.2V or 12V:
  • Full Power: 2710LM
  • R112 Ref. 30 Power: 2170LM
• Color Temperature: 5500-6500K
• 1 Lux Range (actual) @13.2V or 12V:
  • Full Power: 434 m
  • R112 Ref. 30 Power: 374 m
• Candela @13.2V or 12V:
  • Full Power: 188000
  • R112 Ref. 30 Power: 140000
• Cable Length: 40 cm
• Connector Type: DT connector 4-pin
• Dimensions: 229 x 229 x 89 mm
• Homologation:
  • ECE R112 (Ref. 30)
  • R10 EMC
  • R7: White position light

Wiring Diagram:

DT 4-pin connector. The mating connector is included:

• Phase 1: Ground -

• Phase 2: White backlight

• Phase 4: High beam +

• Phase 5: ECE mode (blue separate cable)
